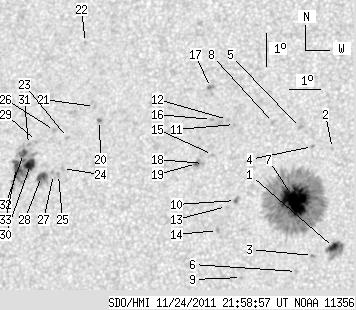

SDO HMI 2011-11-24 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.36 | 417.85 | 41.95 | 219.64 | 15.20 | 232.45 | -13.94 | 44.08 | 0.3324 | -493.8 | -285.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-24 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.97 | 18.66 | 2.56 | 9.61 | 13.54 | 235.50 | -10.88 | 41.79 | 0.2767 | -1152.1 | -751.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 16.55 | 235.32 | -11.07 | 35.67 | 0.3172 | 767.0 | 593.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 13.30 | 234.87 | -11.52 | 44.01 | 0.2811 | -967.0 | -799.7 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 16.61 | 234.68 | -11.71 | 37.05 | 0.3242 | -859.0 | -711.0 | |
| 0.00 | 2.05 | 0.00 | 1.08 | 17.19 | 234.27 | -12.12 | 36.89 | 0.3358 | -938.0 | -772.3 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 12.81 | 234.39 | -12.00 | 46.40 | 0.2812 | -1032.0 | -781.3 | |
| 47.34 | 287.81 | 24.63 | 149.78 | 14.96 | 234.25 | -12.14 | 41.50 | 0.3080 | -1447.1 | -444.5 | |
| 0.00 | 2.31 | 0.00 | 1.22 | 17.34 | 233.40 | -12.99 | 38.48 | 0.3464 | -832.0 | -578.0 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 12.62 | 232.69 | -13.70 | 50.59 | 0.3005 | 719.0 | 540.8 | |
| 0.34 | 2.74 | 0.18 | 1.44 | 14.95 | 232.36 | -14.03 | 45.56 | 0.3295 | -1025.2 | -797.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 17.27 | 232.16 | -14.23 | 41.11 | 0.3585 | -832.0 | -731.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 17.42 | 231.92 | -14.47 | 41.28 | 0.3629 | -666.0 | -617.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 14.76 | 232.09 | -14.30 | 46.51 | 0.3307 | -740.0 | -688.8 | |
| 0.00 | 1.97 | 0.00 | 1.03 | 14.03 | 231.85 | -14.54 | 48.66 | 0.3257 | -849.0 | -699.0 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 16.34 | 231.53 | -14.86 | 44.16 | 0.3548 | -897.0 | -736.3 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 17.42 | 231.41 | -14.98 | 42.25 | 0.3684 | -794.0 | -660.4 | |
| 0.00 | 2.83 | 0.00 | 1.51 | 18.40 | 231.29 | -15.10 | 40.63 | 0.3812 | -829.0 | -721.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 16.07 | 231.27 | -15.12 | 45.22 | 0.3548 | -934.0 | -745.7 | |
| 1.37 | 3.42 | 0.73 | 1.81 | 16.06 | 231.04 | -15.35 | 45.63 | 0.3574 | -921.4 | -877.6 | |
| 1.54 | 1.71 | 0.84 | 0.93 | 17.35 | 227.79 | -18.60 | 48.33 | 0.4094 | -812.6 | -757.5 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 17.78 | 227.58 | -18.81 | 47.82 | 0.4162 | -874.0 | -739.1 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 19.76 | 227.05 | -19.34 | 45.04 | 0.4424 | -661.0 | -543.1 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 16.82 | 226.80 | -19.59 | 50.75 | 0.4163 | 952.0 | 763.8 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 15.87 | 226.73 | -19.66 | 52.73 | 0.4084 | 826.0 | 642.2 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 15.69 | 226.62 | -19.77 | 53.25 | 0.4081 | 922.0 | 776.2 | |
| 0.00 | 2.23 | 0.00 | 1.22 | 17.03 | 226.35 | -20.04 | 50.95 | 0.4238 | 1056.0 | 775.5 | |
| 0.00 | 1.97 | 0.00 | 1.07 | 15.69 | 226.46 | -19.93 | 53.47 | 0.4102 | 532.0 | 587.9 | |
| 5.48 | 11.73 | 2.98 | 6.37 | 15.62 | 226.07 | -20.32 | 54.10 | 0.4146 | 1007.5 | 574.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 16.69 | 225.79 | -20.60 | 52.33 | 0.4276 | 836.0 | 679.4 | |
| 7.96 | 55.13 | 4.35 | 30.15 | 15.99 | 225.67 | -20.72 | 53.87 | 0.4229 | 1211.7 | 683.3 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 16.60 | 225.54 | -20.85 | 52.83 | 0.4299 | 857.0 | 731.9 | |
| 2.31 | -30.00 | 1.27 | -30.00 | 16.32 | 225.40 | -20.99 | 53.54 | 0.4292 | 927.2 | 999999 | |
| 8.05 | -30.00 | 4.41 | -30.00 | 15.89 | 225.22 | -21.17 | 54.61 | 0.4279 | 879.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
