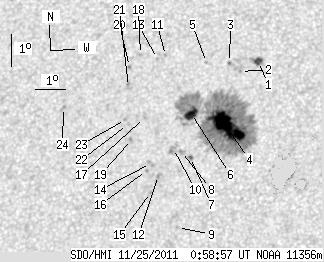

SDO HMI 2011-11-25 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.71 | 344.55 | 33.57 | 190.87 | 17.46 | 223.02 | -21.72 | 52.20 | 0.4487 | -470.5 | -268.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.88 | 6.85 | 2.71 | 3.80 | 19.39 | 224.27 | -20.47 | 47.18 | 0.4516 | 762.3 | 415.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 19.07 | 223.71 | -21.03 | 48.45 | 0.4550 | -910.0 | -735.2 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 19.35 | 223.30 | -21.44 | 48.49 | 0.4624 | -933.0 | -829.2 | |
| 44.70 | 299.27 | 24.66 | 165.49 | 17.37 | 223.46 | -21.28 | 51.85 | 0.4423 | -1264.7 | -377.1 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 19.34 | 222.52 | -22.21 | 49.45 | 0.4714 | -683.0 | -547.7 | |
| 9.76 | -4.00 | 5.44 | -4.00 | 17.76 | 222.24 | -22.50 | 52.58 | 0.4608 | -958.7 | 999999 | |
| 1.37 | 1.97 | 0.76 | 1.09 | 16.41 | 222.37 | -22.36 | 54.94 | 0.4477 | -629.5 | -576.4 | |
| 0.00 | 3.17 | 0.00 | 1.76 | 16.59 | 222.05 | -22.68 | 54.96 | 0.4533 | -374.0 | -241.7 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 14.27 | 222.19 | -22.55 | 59.38 | 0.4337 | 831.0 | 626.7 | |
| 0.00 | 5.91 | 0.00 | 3.29 | 16.68 | 221.77 | -22.96 | 55.10 | 0.4576 | 304.0 | 295.6 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 19.54 | 221.09 | -23.64 | 50.75 | 0.4900 | 795.0 | 658.4 | |
| 0.00 | 2.48 | 0.00 | 1.38 | 15.85 | 221.37 | -23.36 | 57.10 | 0.4563 | 988.0 | 823.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 19.45 | 220.84 | -23.90 | 51.19 | 0.4923 | 725.0 | 568.7 | |
| 0.00 | 3.08 | 0.00 | 1.72 | 16.21 | 221.06 | -23.68 | 56.73 | 0.4632 | 702.0 | 734.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 15.33 | 221.17 | -23.57 | 58.32 | 0.4551 | 926.0 | 648.5 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 16.00 | 220.95 | -23.79 | 57.25 | 0.4629 | 899.0 | 760.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 17.62 | 220.66 | -24.07 | 54.55 | 0.4792 | 801.0 | 512.3 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 19.56 | 220.23 | -24.51 | 51.64 | 0.5005 | 686.0 | 542.8 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 16.94 | 220.32 | -24.42 | 56.13 | 0.4782 | 793.0 | 713.2 | |
| 0.00 | 1.37 | 0.00 | 0.78 | 19.19 | 219.91 | -24.82 | 52.60 | 0.5012 | 869.0 | 711.2 | |
| 0.00 | 3.25 | 0.00 | 1.85 | 18.57 | 219.98 | -24.76 | 53.59 | 0.4953 | 703.0 | 615.9 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 17.40 | 220.12 | -24.62 | 55.50 | 0.4843 | 816.0 | 745.4 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 17.55 | 220.03 | -24.71 | 55.32 | 0.4867 | 886.0 | 737.2 | |
| 0.00 | 2.31 | 0.00 | 1.34 | 17.89 | 217.83 | -26.90 | 56.78 | 0.5168 | 789.0 | 621.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
