SDO HMI 2011-11-25 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.68 | 306.44 | 25.56 | 157.91 | 14.40 | 252.07 | 9.53 | 324.07 | 0.2763 | -705.2 | -399.7 | |
|
previous
or next observation for the same group /

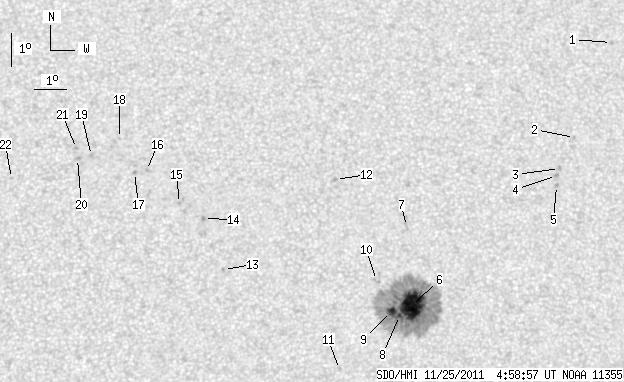

back to the solar disc SDO HMI 2011-11-25 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.76 | 22.15 | 259.49 | 16.94 | 322.46 | 0.4448 | -756.0 | -604.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 19.18 | 257.94 | 15.40 | 320.30 | 0.3943 | -762.0 | -629.4 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 18.23 | 257.37 | 14.82 | 319.65 | 0.3770 | -778.0 | -583.7 | |
| 0.00 | 1.97 | 0.00 | 1.05 | 18.01 | 257.25 | 14.71 | 319.47 | 0.3732 | -1133.0 | -868.9 | |
| 0.00 | 1.97 | 0.00 | 1.05 | 17.71 | 257.23 | 14.68 | 318.95 | 0.3693 | -864.0 | -660.4 | |
| 42.57 | 275.96 | 21.91 | 141.99 | 14.07 | 252.43 | 9.89 | 322.27 | 0.2734 | -1359.6 | -458.5 | |
| 0.00 | 2.48 | 0.00 | 1.29 | 16.47 | 252.39 | 9.84 | 327.37 | 0.3054 | -798.0 | -636.5 | |
| 1.71 | -6.00 | 0.88 | -6.00 | 13.77 | 252.05 | 9.50 | 322.65 | 0.2655 | -1431.2 | 999999 | |
| 5.40 | -6.00 | 2.77 | -6.00 | 13.89 | 251.80 | 9.26 | 323.64 | 0.2646 | -1222.7 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.06 | 14.83 | 251.38 | 8.83 | 326.95 | 0.2734 | -606.0 | -556.2 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 12.15 | 250.15 | 7.60 | 324.63 | 0.2245 | 779.0 | 590.1 | |
| 0.00 | 2.31 | 0.00 | 1.20 | 17.93 | 250.23 | 7.69 | 335.58 | 0.3093 | -725.0 | -531.0 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.18 | 246.67 | 4.13 | 343.46 | 0.2450 | 917.0 | 703.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 16.74 | 246.08 | 3.54 | 347.20 | 0.2680 | 1049.0 | 871.3 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 17.20 | 245.35 | 2.80 | 350.11 | 0.2732 | 1064.0 | 807.0 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 18.22 | 244.34 | 1.79 | 354.05 | 0.2878 | 851.0 | 757.1 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 18.16 | 243.96 | 1.42 | 355.27 | 0.2862 | 986.0 | 798.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 19.21 | 243.50 | 0.96 | 357.01 | 0.3033 | 592.0 | 456.5 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 18.68 | 242.62 | 0.08 | 359.75 | 0.2940 | 989.0 | 712.6 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 18.59 | 242.18 | -0.36 | 1.17 | 0.2925 | 892.0 | 715.8 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 18.90 | 242.15 | -0.39 | 1.25 | 0.2977 | 659.0 | 591.2 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 17.97 | 240.13 | -2.41 | 8.11 | 0.2850 | 657.0 | 493.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
