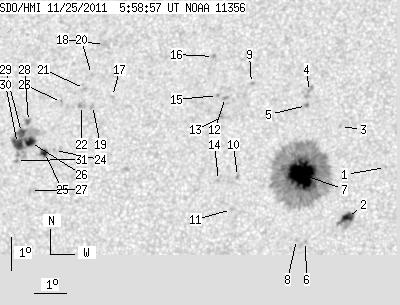

SDO HMI 2011-11-25 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.50 | 401.62 | 40.28 | 207.92 | 15.31 | 232.51 | -9.49 | 32.87 | 0.2886 | -567.6 | -331.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.39 | 15.23 | 236.80 | -5.20 | 20.43 | 0.2518 | -818.0 | -577.3 | |
| 7.02 | 15.93 | 3.58 | 8.12 | 13.71 | 235.67 | -6.33 | 27.13 | 0.2360 | -1148.8 | -632.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 16.48 | 235.37 | -6.63 | 23.39 | 0.2803 | 477.0 | 409.6 | |
| 0.00 | 4.80 | 0.00 | 2.49 | 17.55 | 234.36 | -7.64 | 24.81 | 0.3034 | -828.0 | -733.4 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 17.12 | 234.28 | -7.72 | 25.67 | 0.2975 | -1158.0 | -889.9 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 12.98 | 234.40 | -7.60 | 33.22 | 0.2362 | -913.0 | -660.0 | |
| 45.65 | 282.98 | 23.45 | 145.41 | 15.01 | 234.21 | -7.79 | 29.50 | 0.2670 | -1520.3 | -466.8 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 13.04 | 234.12 | -7.87 | 34.02 | 0.2396 | -881.0 | -749.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.79 | 232.53 | -9.47 | 29.38 | 0.3208 | -811.0 | -716.4 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 14.94 | 232.23 | -9.77 | 35.45 | 0.2839 | -1044.0 | -750.7 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 13.94 | 232.09 | -9.91 | 38.07 | 0.2721 | -857.0 | -638.8 | |
| 0.00 | 2.23 | 0.00 | 1.16 | 17.36 | 231.73 | -10.27 | 32.11 | 0.3215 | -1000.0 | -803.5 | |
| 0.00 | 2.91 | 0.00 | 1.52 | 16.77 | 231.70 | -10.30 | 33.23 | 0.3137 | -1000.0 | -699.0 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 14.82 | 231.64 | -10.35 | 37.28 | 0.2881 | -849.0 | -748.4 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 17.42 | 231.47 | -10.52 | 32.64 | 0.3246 | -883.0 | -663.8 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 18.62 | 231.27 | -10.72 | 31.10 | 0.3428 | -944.0 | -715.1 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 17.37 | 228.15 | -13.85 | 40.07 | 0.3565 | -1039.0 | -702.6 | |
| 0.00 | 5.48 | 0.00 | 2.93 | 18.97 | 227.76 | -14.24 | 37.93 | 0.3801 | -987.0 | -574.0 | |
| 0.00 | 2.06 | 0.00 | 1.09 | 17.09 | 227.53 | -14.47 | 41.82 | 0.3598 | 881.0 | 680.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 18.04 | 227.42 | -14.58 | 40.23 | 0.3723 | -834.0 | -661.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 17.61 | 227.23 | -14.77 | 41.38 | 0.3691 | -917.0 | -623.3 | |
| 0.00 | 3.85 | 0.00 | 2.05 | 17.08 | 227.18 | -14.82 | 42.49 | 0.3636 | 879.0 | 794.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 17.17 | 226.53 | -15.47 | 43.50 | 0.3718 | 876.0 | 686.4 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 15.70 | 226.42 | -15.57 | 46.68 | 0.3568 | 800.0 | 623.5 | |
| 3.77 | 5.65 | 2.00 | 3.00 | 15.64 | 226.11 | -15.89 | 47.37 | 0.3599 | 1109.8 | 803.7 | |
| 5.82 | 48.99 | 3.10 | 26.12 | 15.94 | 225.64 | -16.36 | 47.54 | 0.3688 | 1249.9 | 613.2 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 14.48 | 225.75 | -16.24 | 50.53 | 0.3524 | 831.0 | 541.0 | |
| 1.71 | 3.43 | 0.92 | 1.83 | 16.58 | 225.52 | -16.48 | 46.42 | 0.3769 | 781.5 | 674.9 | |
| 4.71 | -26.00 | 2.52 | -26.00 | 16.24 | 225.32 | -16.68 | 47.44 | 0.3757 | 842.0 | 999999 | |
| 8.82 | -26.00 | 4.71 | -26.00 | 15.91 | 225.22 | -16.78 | 48.30 | 0.3734 | 974.7 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 15.39 | 225.23 | -16.76 | 49.37 | 0.3680 | 770.0 | 638.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
