SDO HMI 2011-11-25 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.19 | 298.99 | 50.56 | 238.95 | 19.47 | 192.40 | -49.60 | 66.27 | 0.7851 | -221.5 | -129.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

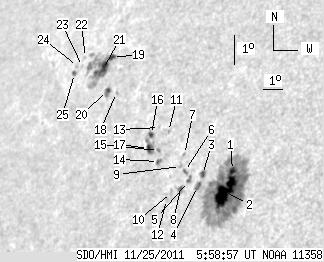

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.48 | 206.92 | 1.89 | 157.63 | 19.20 | 194.68 | -47.32 | 65.92 | 0.7627 | -703.2 | -330.8 | |
| 28.61 | -1.00 | 21.78 | -1.00 | 18.51 | 194.61 | -47.39 | 66.82 | 0.7615 | -1028.7 | 999999 | |
| 2.31 | 3.60 | 1.81 | 2.81 | 19.05 | 193.33 | -48.67 | 66.53 | 0.7761 | -554.5 | -432.9 | |
| 3.68 | -1.00 | 2.88 | -1.00 | 18.67 | 193.24 | -48.76 | 67.03 | 0.7761 | -517.0 | 999999 | |
| 1.37 | 2.83 | 1.08 | 2.23 | 18.82 | 192.75 | -49.25 | 66.99 | 0.7814 | -371.2 | -388.0 | |
| 1.03 | 2.06 | 0.82 | 1.64 | 19.12 | 192.43 | -49.57 | 66.70 | 0.7853 | -349.6 | -309.9 | |
| 0.00 | 0.77 | 0.00 | 0.62 | 19.65 | 192.21 | -49.79 | 66.11 | 0.7889 | -328.0 | -307.4 | |
| 1.46 | 3.34 | 1.16 | 2.65 | 18.59 | 192.45 | -49.55 | 67.35 | 0.7838 | -438.5 | -410.1 | |
| 0.00 | 1.20 | 0.00 | 0.96 | 19.27 | 192.18 | -49.82 | 66.58 | 0.7883 | 110.0 | 8.6 | |
| 0.00 | 2.14 | 0.00 | 1.71 | 18.46 | 192.07 | -49.93 | 67.62 | 0.7873 | -305.0 | -232.4 | |
| 0.00 | 0.94 | 0.00 | 0.78 | 20.35 | 191.11 | -50.89 | 65.57 | 0.8013 | -347.0 | -317.4 | |
| 0.00 | 1.80 | 0.00 | 1.44 | 18.24 | 191.91 | -50.09 | 67.93 | 0.7883 | -190.0 | -184.0 | |
| 0.00 | 0.51 | 0.00 | 0.43 | 20.46 | 190.60 | -51.40 | 65.57 | 0.8064 | -103.0 | -88.0 | |
| 0.00 | 2.14 | 0.00 | 1.76 | 19.41 | 191.03 | -50.97 | 66.74 | 0.7998 | 582.0 | 657.2 | |
| 0.00 | 1.71 | 0.00 | 1.41 | 19.75 | 190.88 | -51.12 | 66.36 | 0.8020 | 816.0 | 656.0 | |
| 2.23 | 13.10 | 1.87 | 10.95 | 20.24 | 190.30 | -51.70 | 65.93 | 0.8087 | 675.3 | 416.4 | |
| 3.17 | -16.00 | 2.64 | -16.00 | 19.80 | 190.35 | -51.65 | 66.44 | 0.8072 | 501.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.92 | 21.51 | 187.80 | -54.20 | 65.07 | 0.8343 | -364.0 | -236.9 | |
| 2.74 | 45.48 | 2.52 | 42.25 | 22.60 | 186.95 | -55.05 | 64.01 | 0.8439 | 673.2 | 491.2 | |
| 2.23 | 4.71 | 2.01 | 4.26 | 21.56 | 187.28 | -54.72 | 65.14 | 0.8389 | 650.0 | 584.2 | |
| 9.42 | -19.00 | 8.70 | -19.00 | 22.21 | 186.62 | -55.38 | 64.54 | 0.8459 | 794.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.65 | 22.57 | 185.42 | -56.58 | 64.42 | 0.8566 | 270.0 | 239.0 | |
| 0.00 | 1.20 | 0.00 | 1.14 | 22.28 | 185.43 | -56.57 | 64.75 | 0.8560 | 228.0 | 284.4 | |
| 0.00 | 0.94 | 0.00 | 0.90 | 22.27 | 185.14 | -56.86 | 64.82 | 0.8583 | 287.0 | 217.5 | |
| 1.46 | 1.88 | 1.40 | 1.81 | 22.05 | 185.10 | -56.90 | 65.09 | 0.8582 | 293.2 | 201.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
