SDO HMI 2011-11-25 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.04 | 129.91 | 17.24 | 96.58 | -24.16 | 283.30 | 41.85 | 234.80 | 0.7472 | 487.2 | 193.5 | |
|
previous
or next observation for the same group /

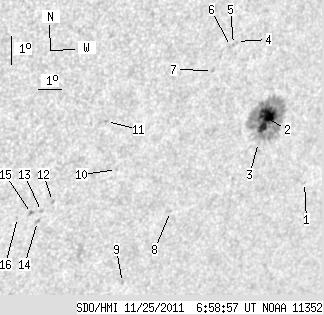

back to the solar disc SDO HMI 2011-11-25 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.69 | -26.12 | 286.69 | 45.23 | 234.29 | 0.7874 | 413.0 | 389.0 | |
| 23.04 | 112.19 | 17.24 | 84.06 | -23.95 | 283.97 | 42.52 | 235.46 | 0.7522 | 945.6 | 248.1 | |
| 0.00 | 1.20 | 0.00 | 0.90 | -24.74 | 283.95 | 42.50 | 234.51 | 0.7559 | -36.0 | -27.3 | |
| 0.00 | 0.34 | 0.00 | 0.24 | -21.40 | 281.74 | 40.29 | 237.39 | 0.7171 | 489.0 | 477.8 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -21.50 | 281.65 | 40.20 | 237.22 | 0.7166 | 728.0 | 584.3 | |
| 0.00 | 1.71 | 0.00 | 1.21 | -21.56 | 281.54 | 40.09 | 237.08 | 0.7159 | 650.0 | 492.6 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -22.33 | 281.05 | 39.60 | 235.83 | 0.7150 | 479.0 | 461.9 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -26.97 | 281.05 | 39.59 | 230.21 | 0.7416 | 624.0 | 539.9 | |
| 0.00 | 1.37 | 0.00 | 1.02 | -29.37 | 280.01 | 38.56 | 226.81 | 0.7474 | 564.0 | 409.2 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -25.52 | 278.20 | 36.75 | 230.11 | 0.7061 | -453.0 | -390.1 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -23.91 | 277.25 | 35.80 | 231.43 | 0.6864 | -755.0 | -620.4 | |
| 0.00 | 1.28 | 0.00 | 0.88 | -26.54 | 275.97 | 34.51 | 227.29 | 0.6922 | -574.0 | -524.5 | |
| 0.00 | 1.28 | 0.00 | 0.88 | -26.87 | 275.64 | 34.18 | 226.65 | 0.6915 | -641.0 | -496.8 | |
| 0.00 | 1.97 | 0.00 | 1.35 | -27.21 | 275.59 | 34.14 | 226.23 | 0.6936 | -578.0 | -419.7 | |
| 0.00 | 2.31 | 0.00 | 1.57 | -26.93 | 275.26 | 33.80 | 226.30 | 0.6885 | -850.0 | -664.7 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -27.06 | 274.74 | 33.29 | 225.75 | 0.6847 | -654.0 | -520.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
