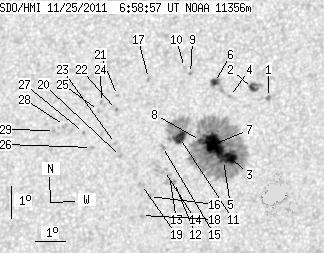

SDO HMI 2011-11-25 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.00 | 337.95 | 33.61 | 183.40 | 17.60 | 223.06 | -18.39 | 47.39 | 0.4103 | -494.4 | -293.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.97 | 19.01 | 224.97 | -16.49 | 41.85 | 0.4039 | 944.0 | 833.2 | |
| 2.65 | 8.05 | 1.44 | 4.37 | 19.28 | 224.41 | -17.04 | 42.28 | 0.4129 | 635.8 | 659.9 | |
| 12.08 | 245.54 | 6.51 | 132.79 | 17.15 | 223.88 | -17.57 | 47.05 | 0.3958 | -1384.1 | -425.5 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 19.03 | 223.69 | -17.77 | 43.87 | 0.4180 | -863.0 | -532.8 | |
| 1.28 | -3.00 | 0.69 | -3.00 | 17.05 | 223.70 | -17.76 | 47.52 | 0.3970 | -1169.2 | 999999 | |
| 4.03 | 9.42 | 2.20 | 5.16 | 19.46 | 223.14 | -18.31 | 43.95 | 0.4286 | -888.3 | -703.2 | |
| 28.43 | -3.00 | 15.40 | -3.00 | 17.54 | 223.32 | -18.13 | 47.15 | 0.4065 | -1282.1 | 999999 | |
| 3.08 | -3.00 | 1.67 | -3.00 | 17.66 | 222.88 | -18.57 | 47.57 | 0.4128 | -765.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 19.73 | 222.31 | -19.14 | 44.69 | 0.4407 | -707.0 | -507.6 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 19.92 | 222.09 | -19.36 | 44.70 | 0.4451 | 787.0 | 586.4 | |
| 10.45 | 43.08 | 5.70 | 23.55 | 17.75 | 222.18 | -19.27 | 48.42 | 0.4220 | -994.9 | -228.8 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 16.37 | 222.17 | -19.28 | 51.11 | 0.4089 | -751.0 | -621.3 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 16.58 | 221.98 | -19.47 | 50.94 | 0.4132 | 148.0 | 71.2 | |
| 0.00 | 2.31 | 0.00 | 1.26 | 16.73 | 221.80 | -19.65 | 50.89 | 0.4168 | -188.0 | -107.2 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 17.47 | 221.66 | -19.80 | 49.67 | 0.4256 | -617.0 | -496.8 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 15.93 | 221.40 | -20.06 | 53.01 | 0.4146 | 1007.0 | 815.9 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 19.57 | 220.93 | -20.52 | 46.88 | 0.4545 | 801.0 | 674.9 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 15.35 | 221.19 | -20.26 | 54.45 | 0.4121 | 864.0 | 724.2 | |
| 0.00 | 2.14 | 0.00 | 1.17 | 16.29 | 221.09 | -20.36 | 52.68 | 0.4217 | 829.0 | 718.4 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 17.15 | 220.30 | -21.15 | 52.03 | 0.4392 | 813.0 | 645.7 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 19.03 | 219.96 | -21.49 | 49.04 | 0.4605 | 844.0 | 608.5 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 18.59 | 219.99 | -21.47 | 49.78 | 0.4562 | 945.0 | 794.8 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 17.54 | 220.09 | -21.36 | 51.55 | 0.4454 | 862.0 | 663.7 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 18.80 | 219.45 | -22.00 | 50.05 | 0.4645 | 685.0 | 530.8 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 18.56 | 219.39 | -22.07 | 50.57 | 0.4630 | 699.0 | 653.4 | |
| 0.00 | 1.46 | 0.00 | 0.81 | 17.41 | 219.30 | -22.15 | 52.73 | 0.4540 | 773.0 | 523.6 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 17.87 | 218.97 | -22.48 | 52.28 | 0.4620 | 807.0 | 696.7 | |
| 0.00 | 2.23 | 0.00 | 1.25 | 18.08 | 218.30 | -23.15 | 52.66 | 0.4720 | 675.0 | 586.0 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 17.92 | 217.99 | -23.47 | 53.29 | 0.4746 | 696.0 | 628.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
