SDO HMI 2011-11-25 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.63 | 288.53 | 51.16 | 228.11 | 19.50 | 192.41 | -49.04 | 66.06 | 0.7795 | -186.1 | -148.6 | |
|
previous
or next observation for the same group /

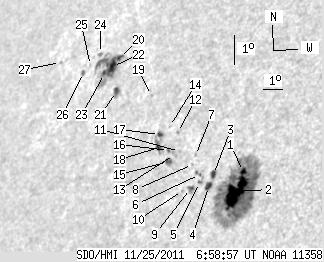

back to the solar disc SDO HMI 2011-11-25 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.31 | 191.59 | 1.75 | 144.31 | 19.17 | 194.70 | -46.75 | 65.76 | 0.7568 | -725.3 | -368.0 | |
| 28.18 | -1.00 | 21.24 | -1.00 | 18.55 | 194.56 | -46.89 | 66.61 | 0.7564 | -1001.9 | 999999 | |
| 3.34 | 4.45 | 2.58 | 3.44 | 19.05 | 193.35 | -48.10 | 66.35 | 0.7704 | -557.0 | -397.2 | |
| 3.85 | 4.62 | 2.98 | 3.58 | 18.68 | 193.26 | -48.20 | 66.85 | 0.7703 | -543.5 | -312.6 | |
| 1.28 | 1.54 | 1.00 | 1.20 | 18.79 | 192.79 | -48.67 | 66.84 | 0.7754 | -400.3 | -526.7 | |
| 0.00 | 3.85 | 0.00 | 3.02 | 19.04 | 192.69 | -48.76 | 66.56 | 0.7771 | -457.0 | -372.2 | |
| 0.00 | 0.86 | 0.00 | 0.68 | 19.63 | 192.26 | -49.19 | 65.96 | 0.7830 | -463.0 | -395.8 | |
| 0.00 | 0.77 | 0.00 | 0.61 | 19.34 | 192.23 | -49.22 | 66.32 | 0.7825 | -265.0 | -178.0 | |
| 1.63 | 3.85 | 1.28 | 3.03 | 18.60 | 192.43 | -49.02 | 67.19 | 0.7785 | -447.5 | -435.9 | |
| 0.00 | 0.86 | 0.00 | 0.68 | 18.53 | 192.08 | -49.38 | 67.38 | 0.7820 | -342.0 | -255.8 | |
| 0.00 | 1.20 | 0.00 | 0.97 | 19.73 | 191.43 | -50.02 | 66.07 | 0.7914 | 370.0 | 305.4 | |
| 0.00 | 1.03 | 0.00 | 0.84 | 20.32 | 191.08 | -50.38 | 65.45 | 0.7964 | -396.0 | -282.5 | |
| 0.00 | 2.48 | 0.00 | 2.01 | 19.64 | 191.23 | -50.22 | 66.25 | 0.7931 | 450.0 | 432.3 | |
| 0.00 | 0.51 | 0.00 | 0.42 | 20.50 | 190.59 | -50.86 | 65.37 | 0.8014 | -216.0 | -155.7 | |
| 3.17 | 3.94 | 2.57 | 3.20 | 19.41 | 191.03 | -50.42 | 66.58 | 0.7945 | 565.0 | 600.0 | |
| 0.00 | 1.54 | 0.00 | 1.26 | 19.75 | 190.88 | -50.57 | 66.20 | 0.7968 | 629.0 | 591.9 | |
| 2.14 | 12.25 | 1.78 | 10.12 | 20.24 | 190.21 | -51.24 | 65.79 | 0.8045 | 681.8 | 385.3 | |
| 2.14 | -17.00 | 1.77 | -17.00 | 19.84 | 190.34 | -51.11 | 66.25 | 0.8022 | 528.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.73 | 21.45 | 189.21 | -52.24 | 64.62 | 0.8167 | 562.0 | 436.9 | |
| 2.14 | 40.51 | 1.94 | 37.15 | 22.61 | 186.85 | -54.60 | 63.89 | 0.8402 | 688.7 | 527.4 | |
| 3.34 | 5.82 | 2.98 | 5.19 | 21.53 | 187.30 | -54.16 | 65.02 | 0.8340 | 680.3 | 385.5 | |
| 6.68 | -20.00 | 6.09 | -20.00 | 22.31 | 186.63 | -54.82 | 64.28 | 0.8414 | 850.9 | 999999 | |
| 1.46 | -20.00 | 1.34 | -20.00 | 22.08 | 186.32 | -55.14 | 64.63 | 0.8436 | 745.8 | 999999 | |
| 0.34 | 1.88 | 0.32 | 1.76 | 22.71 | 185.71 | -55.74 | 64.05 | 0.8500 | 396.2 | 330.4 | |
| 0.00 | 0.86 | 0.00 | 0.80 | 22.32 | 185.38 | -56.07 | 64.58 | 0.8520 | 315.0 | 256.0 | |
| 1.63 | 2.23 | 1.54 | 2.10 | 22.09 | 185.11 | -56.34 | 64.91 | 0.8537 | 318.3 | 192.9 | |
| 0.00 | 1.03 | 0.00 | 1.01 | 22.37 | 183.57 | -57.88 | 64.93 | 0.8667 | 296.0 | 287.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
