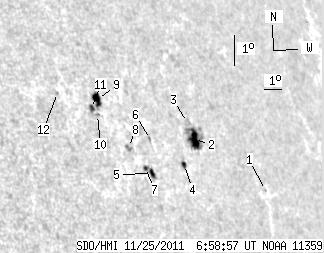

SDO HMI 2011-11-25 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.03 | 61.58 | 26.99 | 57.66 | 16.38 | 298.50 | 57.05 | 288.38 | 0.8498 | -141.6 | -155.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.84 | 14.57 | 304.01 | 62.56 | 285.52 | 0.8934 | 336.0 | 300.6 | |
| 12.33 | 25.78 | 12.12 | 25.36 | 16.22 | 300.33 | 58.88 | 287.86 | 0.8657 | -666.9 | -230.1 | |
| 0.00 | 3.60 | 0.00 | 3.53 | 16.75 | 300.17 | 58.72 | 288.49 | 0.8650 | -429.0 | -366.2 | |
| 2.48 | 3.34 | 2.37 | 3.18 | 15.47 | 299.39 | 57.94 | 287.14 | 0.8569 | -540.7 | -418.1 | |
| 2.74 | 7.19 | 2.48 | 6.51 | 15.24 | 297.48 | 56.03 | 287.17 | 0.8396 | 239.1 | -92.7 | |
| 0.00 | 1.46 | 0.00 | 1.34 | 16.28 | 297.81 | 56.36 | 288.34 | 0.8440 | 386.0 | 240.1 | |
| 1.46 | -5.00 | 1.31 | -5.00 | 15.43 | 297.17 | 55.72 | 287.45 | 0.8371 | -412.7 | 999999 | |
| 0.00 | 3.43 | 0.00 | 3.04 | 16.06 | 296.50 | 55.05 | 288.31 | 0.8319 | -489.0 | -483.8 | |
| 7.19 | 9.93 | 6.27 | 8.65 | 17.56 | 295.48 | 54.03 | 290.31 | 0.8249 | 539.5 | 322.4 | |
| 0.00 | 1.20 | 0.00 | 1.04 | 17.10 | 295.28 | 53.83 | 289.80 | 0.8223 | 495.0 | 455.2 | |
| 2.83 | 3.51 | 2.44 | 3.03 | 17.29 | 295.05 | 53.60 | 290.08 | 0.8204 | 619.2 | 558.9 | |
| 0.00 | 1.37 | 0.00 | 1.14 | 17.82 | 293.51 | 52.06 | 291.06 | 0.8068 | -550.0 | -441.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
