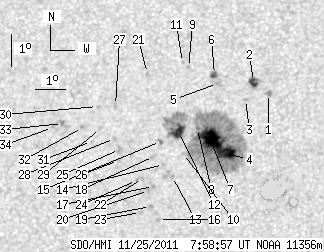

SDO HMI 2011-11-25 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.04 | 351.79 | 34.07 | 190.40 | 17.55 | 222.96 | -17.95 | 46.81 | 0.4047 | -364.9 | -244.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.00 | 0.00 | 1.62 | 18.97 | 225.01 | -15.90 | 40.90 | 0.3973 | 930.0 | 813.2 | |
| 5.14 | 9.85 | 2.78 | 5.33 | 19.34 | 224.49 | -16.42 | 41.16 | 0.4071 | 722.7 | 404.7 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 18.78 | 224.28 | -16.63 | 42.48 | 0.4029 | -744.0 | -531.1 | |
| 14.13 | 247.67 | 7.60 | 133.54 | 17.11 | 223.80 | -17.11 | 46.38 | 0.3901 | -1323.4 | -425.2 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 19.27 | 223.31 | -17.60 | 43.17 | 0.4188 | -829.0 | -636.9 | |
| 3.34 | 3.68 | 1.82 | 2.01 | 19.55 | 223.18 | -17.73 | 42.90 | 0.4233 | -915.3 | -882.2 | |
| 29.55 | -4.00 | 15.96 | -4.00 | 17.54 | 223.27 | -17.64 | 46.40 | 0.4008 | -1225.2 | 999999 | |
| 0.86 | -4.00 | 0.46 | -4.00 | 17.87 | 222.81 | -18.10 | 46.47 | 0.4096 | -534.0 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 19.76 | 222.30 | -18.61 | 43.87 | 0.4352 | -669.0 | -501.2 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 17.10 | 222.43 | -18.48 | 48.50 | 0.4062 | 64.0 | 64.1 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 19.92 | 222.08 | -18.83 | 43.93 | 0.4392 | 699.0 | 526.9 | |
| 10.02 | 41.36 | 5.45 | 22.55 | 17.78 | 222.20 | -18.71 | 47.56 | 0.4157 | -989.1 | -201.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 16.39 | 222.14 | -18.76 | 50.31 | 0.4028 | -810.0 | -473.2 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 16.76 | 221.81 | -19.09 | 50.06 | 0.4103 | -510.0 | -328.5 | |
| 0.00 | 2.48 | 0.00 | 1.35 | 17.46 | 221.64 | -19.27 | 48.94 | 0.4193 | -719.0 | -493.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 15.08 | 221.82 | -19.09 | 53.48 | 0.3947 | 811.0 | 620.9 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 16.08 | 221.56 | -19.35 | 51.76 | 0.4072 | 933.0 | 761.2 | |
| 0.00 | 2.65 | 0.00 | 1.45 | 17.00 | 221.46 | -19.45 | 50.08 | 0.4170 | 272.0 | 375.0 | |
| 0.00 | 1.97 | 0.00 | 1.06 | 15.47 | 221.52 | -19.39 | 53.06 | 0.4021 | 920.0 | 719.2 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 15.96 | 221.40 | -19.50 | 52.21 | 0.4079 | 912.0 | 710.4 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 19.56 | 220.96 | -19.95 | 46.11 | 0.4481 | 717.0 | 602.1 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 16.32 | 221.17 | -19.74 | 51.80 | 0.4142 | 872.0 | 663.2 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 15.29 | 221.21 | -19.70 | 53.85 | 0.4044 | 866.0 | 582.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 16.26 | 220.98 | -19.93 | 52.17 | 0.4160 | 890.0 | 712.7 | |
| 0.00 | 2.83 | 0.00 | 1.55 | 17.21 | 220.31 | -20.59 | 51.21 | 0.4329 | 817.0 | 680.3 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 16.87 | 220.32 | -20.59 | 51.84 | 0.4298 | 870.0 | 685.7 | |
| 0.00 | 2.23 | 0.00 | 1.23 | 18.56 | 220.02 | -20.89 | 49.10 | 0.4491 | 770.0 | 596.0 | |
| 0.00 | 1.97 | 0.00 | 1.08 | 17.54 | 220.11 | -20.80 | 50.84 | 0.4385 | 900.0 | 623.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 17.85 | 219.61 | -21.30 | 50.91 | 0.4474 | 559.0 | 474.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 18.52 | 219.42 | -21.49 | 49.92 | 0.4559 | 758.0 | 646.1 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 17.44 | 219.36 | -21.55 | 51.96 | 0.4469 | 739.0 | 638.4 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 17.87 | 219.00 | -21.91 | 51.60 | 0.4550 | 858.0 | 761.2 | |
| 0.00 | 5.57 | 0.00 | 3.11 | 17.99 | 218.31 | -22.60 | 52.20 | 0.4645 | 824.0 | 634.1 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 17.86 | 217.99 | -22.92 | 52.79 | 0.4673 | 725.0 | 652.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
