SDO HMI 2011-11-25 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.08 | 39.04 | 24.03 | 74.88 | 18.84 | 315.57 | 74.66 | 289.10 | 0.9659 | -145.5 | -145.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

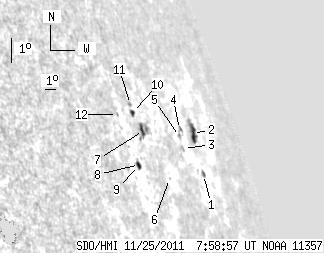

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 2.31 | 3.82 | 5.16 | 17.61 | 317.93 | 77.03 | 287.69 | 0.9759 | -174.9 | -31.4 | |
| 5.57 | 11.65 | 12.81 | 26.89 | 18.88 | 318.23 | 77.33 | 288.98 | 0.9772 | -328.9 | -150.6 | |
| 0.00 | 2.31 | 0.00 | 4.64 | 18.46 | 316.41 | 75.50 | 288.64 | 0.9703 | -526.0 | -446.3 | |
| 0.00 | 2.31 | 0.00 | 4.76 | 19.05 | 316.69 | 75.78 | 289.23 | 0.9715 | -503.0 | -322.9 | |
| 0.00 | 1.97 | 0.00 | 3.96 | 18.84 | 316.40 | 75.49 | 289.03 | 0.9703 | -476.0 | -409.8 | |
| 0.00 | 0.94 | 0.00 | 1.62 | 17.60 | 313.77 | 72.86 | 287.90 | 0.9585 | 205.0 | 173.3 | |
| 0.00 | 9.42 | 0.00 | 15.29 | 19.12 | 312.67 | 71.76 | 289.57 | 0.9537 | -221.0 | -100.0 | |
| 1.11 | 3.25 | 1.68 | 4.89 | 18.10 | 311.26 | 70.35 | 288.61 | 0.9460 | -176.9 | 143.6 | |
| 1.46 | -8.00 | 2.18 | -8.00 | 18.07 | 311.14 | 70.23 | 288.59 | 0.9453 | 252.1 | 999999 | |
| 2.23 | 2.65 | 3.54 | 4.22 | 19.70 | 312.18 | 71.27 | 290.21 | 0.9515 | 310.1 | 332.0 | |
| 0.00 | 1.37 | 0.00 | 2.18 | 19.95 | 312.25 | 71.35 | 290.47 | 0.9520 | 246.0 | 246.9 | |
| 0.00 | 0.86 | 0.00 | 1.27 | 19.68 | 310.72 | 69.81 | 290.32 | 0.9439 | 293.0 | 277.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
