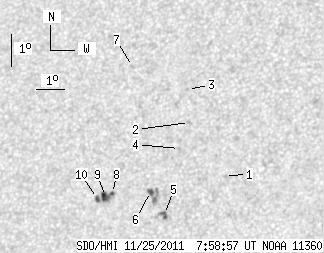

SDO HMI 2011-11-25 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.99 | 35.20 | 8.67 | 20.31 | 18.23 | 214.35 | -26.55 | 55.82 | 0.5155 | 370.5 | -29.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.58 | 18.50 | 217.22 | -23.69 | 52.50 | 0.4822 | 627.0 | 564.2 | |
| 0.00 | 1.88 | 0.00 | 1.09 | 20.13 | 215.75 | -25.15 | 51.30 | 0.5134 | 757.0 | 546.3 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 21.16 | 215.50 | -25.41 | 49.91 | 0.5251 | 724.0 | 604.9 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 19.32 | 215.54 | -25.36 | 52.85 | 0.5092 | 761.0 | 608.0 | |
| 3.00 | 5.57 | 1.71 | 3.17 | 17.28 | 215.35 | -25.56 | 56.55 | 0.4958 | -854.2 | -605.6 | |
| 3.00 | 10.45 | 1.72 | 5.99 | 17.98 | 214.76 | -26.15 | 55.88 | 0.5085 | -690.5 | -649.9 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 21.86 | 213.40 | -27.50 | 50.87 | 0.5547 | 303.0 | 231.4 | |
| 1.37 | 12.93 | 0.80 | 7.52 | 17.90 | 213.44 | -27.46 | 57.18 | 0.5243 | 880.4 | 693.3 | |
| 5.14 | -8.00 | 2.99 | -8.00 | 17.80 | 213.21 | -27.69 | 57.54 | 0.5265 | 948.5 | 999999 | |
| 2.48 | -8.00 | 1.45 | -8.00 | 17.74 | 212.94 | -27.96 | 57.87 | 0.5295 | 690.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
