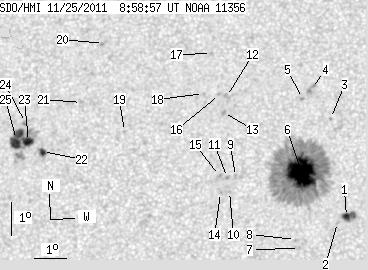

SDO HMI 2011-11-25 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.93 | 385.80 | 40.32 | 198.61 | 15.28 | 232.86 | -7.51 | 27.15 | 0.2713 | -629.3 | -359.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.68 | 8.91 | 1.87 | 4.53 | 13.72 | 235.62 | -4.74 | 20.97 | 0.2254 | -1145.1 | -966.1 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 13.54 | 235.35 | -5.01 | 22.37 | 0.2243 | -854.0 | -611.5 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 16.71 | 235.06 | -5.31 | 18.80 | 0.2761 | 848.0 | 684.4 | |
| 0.00 | 4.80 | 0.00 | 2.48 | 17.63 | 234.44 | -5.93 | 19.64 | 0.2940 | -680.0 | -771.1 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 17.32 | 234.17 | -6.20 | 20.85 | 0.2907 | -1149.0 | -862.9 | |
| 49.24 | 294.24 | 25.22 | 150.71 | 15.06 | 234.21 | -6.16 | 24.03 | 0.2554 | -1473.8 | -432.0 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 12.75 | 234.21 | -6.15 | 28.45 | 0.2205 | -793.0 | -619.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 13.03 | 234.08 | -6.28 | 28.35 | 0.2256 | -787.0 | -665.8 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 14.93 | 232.17 | -8.19 | 30.87 | 0.2694 | -989.0 | -740.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 14.47 | 232.01 | -8.36 | 32.32 | 0.2644 | -934.0 | -696.5 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 14.90 | 231.93 | -8.43 | 31.68 | 0.2711 | -986.0 | -821.9 | |
| 0.00 | 3.00 | 0.00 | 1.56 | 17.37 | 231.79 | -8.57 | 27.66 | 0.3079 | -870.0 | -773.0 | |
| 0.00 | 1.97 | 0.00 | 1.02 | 16.88 | 231.72 | -8.64 | 28.65 | 0.3013 | -1012.0 | -804.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 14.44 | 231.73 | -8.63 | 33.23 | 0.2665 | -911.0 | -711.3 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 14.96 | 231.68 | -8.68 | 32.31 | 0.2742 | -826.0 | -609.2 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 17.43 | 231.57 | -8.80 | 28.16 | 0.3105 | -740.0 | -688.3 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 18.70 | 231.25 | -9.11 | 27.06 | 0.3313 | -787.0 | -502.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 17.46 | 231.06 | -9.30 | 29.45 | 0.3150 | -753.0 | -544.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 16.28 | 228.64 | -11.72 | 37.57 | 0.3212 | -689.0 | -461.4 | |
| 0.00 | 2.57 | 0.00 | 1.37 | 18.99 | 227.79 | -12.57 | 34.55 | 0.3645 | -918.0 | -701.6 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 17.16 | 227.22 | -13.14 | 38.97 | 0.3468 | 794.0 | 610.7 | |
| 3.00 | 5.91 | 1.58 | 3.11 | 15.66 | 226.10 | -14.27 | 44.30 | 0.3412 | 1148.0 | 771.6 | |
| 6.68 | 41.96 | 3.53 | 22.19 | 15.96 | 225.63 | -14.73 | 44.56 | 0.3500 | 1224.2 | 642.6 | |
| 0.00 | 3.60 | 0.00 | 1.91 | 16.54 | 225.49 | -14.87 | 43.63 | 0.3582 | 817.0 | 655.4 | |
| 15.33 | -23.00 | 8.12 | -23.00 | 16.02 | 225.24 | -15.12 | 45.16 | 0.3552 | 915.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
