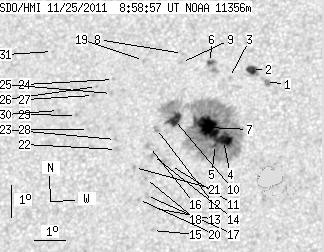

SDO HMI 2011-11-25 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.22 | 351.52 | 31.40 | 189.58 | 17.60 | 223.00 | -17.36 | 45.80 | 0.3984 | -346.9 | -291.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.71 | 0.00 | 2.53 | 18.97 | 225.02 | -15.34 | 39.93 | 0.3915 | 835.0 | 742.7 | |
| 5.99 | 9.85 | 3.24 | 5.32 | 19.34 | 224.53 | -15.83 | 40.16 | 0.4010 | 732.3 | 353.7 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 19.09 | 223.84 | -16.53 | 41.77 | 0.4053 | -806.0 | -696.2 | |
| 10.45 | 293.81 | 5.60 | 158.22 | 17.14 | 223.83 | -16.53 | 45.37 | 0.3838 | -1374.5 | -403.7 | |
| 0.94 | -4.00 | 0.51 | -4.00 | 17.02 | 223.58 | -16.78 | 46.02 | 0.3853 | -985.2 | 999999 | |
| 2.14 | 8.73 | 1.17 | 4.75 | 19.55 | 223.16 | -17.20 | 42.07 | 0.4177 | -984.3 | -640.7 | |
| 27.23 | -4.00 | 14.66 | -4.00 | 17.54 | 223.31 | -17.06 | 45.46 | 0.3940 | -1254.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 19.82 | 222.21 | -18.15 | 43.08 | 0.4310 | -512.0 | -343.3 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 19.54 | 222.21 | -18.15 | 43.56 | 0.4279 | -771.0 | -589.8 | |
| 11.47 | -4.00 | 6.22 | -4.00 | 17.77 | 222.17 | -18.19 | 46.78 | 0.4096 | -939.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 16.36 | 222.19 | -18.18 | 49.51 | 0.3953 | -235.0 | -209.0 | |
| 0.00 | 2.74 | 0.00 | 1.49 | 17.49 | 221.61 | -18.75 | 48.14 | 0.4134 | -550.0 | -517.5 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 15.04 | 221.79 | -18.57 | 52.81 | 0.3877 | 749.0 | 630.3 | |
| 0.00 | 2.06 | 0.00 | 1.11 | 16.66 | 221.57 | -18.79 | 49.81 | 0.4057 | 198.0 | 282.8 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 14.38 | 221.79 | -18.58 | 54.27 | 0.3818 | 813.0 | 647.8 | |
| 0.00 | 4.02 | 0.00 | 2.18 | 16.94 | 221.44 | -18.92 | 49.45 | 0.4099 | 161.0 | 197.4 | |
| 0.00 | 2.48 | 0.00 | 1.34 | 15.44 | 221.50 | -18.87 | 52.40 | 0.3951 | 663.0 | 662.7 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 15.96 | 221.41 | -18.95 | 51.44 | 0.4010 | 1000.0 | 773.1 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 19.59 | 220.94 | -19.42 | 45.32 | 0.4425 | 792.0 | 621.2 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 15.31 | 221.25 | -19.11 | 53.00 | 0.3972 | 914.0 | 651.4 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 16.29 | 221.02 | -19.34 | 51.32 | 0.4090 | 908.0 | 755.6 | |
| 0.00 | 2.57 | 0.00 | 1.40 | 16.83 | 220.37 | -19.99 | 51.12 | 0.4221 | 821.0 | 680.7 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 17.14 | 220.31 | -20.06 | 50.62 | 0.4258 | 886.0 | 713.7 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 18.99 | 220.02 | -20.35 | 47.62 | 0.4469 | 694.0 | 544.5 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 18.56 | 220.00 | -20.36 | 48.40 | 0.4429 | 818.0 | 660.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 18.77 | 219.48 | -20.89 | 48.72 | 0.4511 | 660.0 | 508.3 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 18.49 | 219.41 | -20.95 | 49.29 | 0.4492 | 759.0 | 597.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 17.44 | 219.38 | -20.99 | 51.26 | 0.4399 | 754.0 | 539.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 17.87 | 218.92 | -21.44 | 51.03 | 0.4493 | 727.0 | 686.8 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 18.02 | 218.30 | -22.06 | 51.51 | 0.4582 | 820.0 | 716.1 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 19.84 | 217.84 | -22.52 | 48.88 | 0.4802 | 553.0 | 483.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
