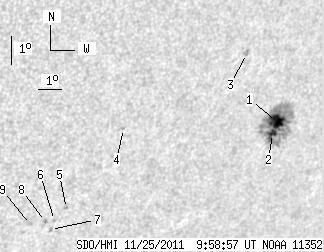

SDO HMI 2011-11-25 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.55 | 99.90 | 13.48 | 76.23 | -23.97 | 283.32 | 43.51 | 235.91 | 0.7617 | 462.4 | 242.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.04 | 89.82 | 10.78 | 69.09 | -23.79 | 283.91 | 44.10 | 236.47 | 0.7662 | 978.0 | 295.4 | |
| 3.51 | -1.00 | 2.70 | -1.00 | -24.19 | 283.90 | 44.09 | 235.99 | 0.7679 | 801.3 | 999999 | |
| 0.00 | 3.25 | 0.00 | 2.36 | -21.54 | 281.71 | 41.90 | 238.09 | 0.7340 | 777.0 | 534.0 | |
| 0.00 | 0.68 | 0.00 | 0.48 | -23.89 | 277.38 | 37.57 | 232.65 | 0.7036 | -652.0 | -595.1 | |
| 0.00 | 1.37 | 0.00 | 0.96 | -26.52 | 275.98 | 36.16 | 228.52 | 0.7071 | -631.0 | -442.2 | |
| 0.00 | 0.68 | 0.00 | 0.48 | -26.91 | 275.63 | 35.81 | 227.81 | 0.7067 | -642.0 | -513.1 | |
| 0.00 | 1.88 | 0.00 | 1.32 | -27.22 | 275.58 | 35.76 | 227.41 | 0.7083 | -587.0 | -446.3 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -26.94 | 275.27 | 35.46 | 227.52 | 0.7036 | -782.0 | -703.3 | |
| 0.00 | 1.28 | 0.00 | 0.89 | -27.03 | 274.69 | 34.88 | 226.99 | 0.6989 | -719.0 | -571.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
