SDO HMI 2011-11-25 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.40 | 50.96 | 23.92 | 49.93 | 16.48 | 298.51 | 58.69 | 288.23 | 0.8640 | -174.9 | -79.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

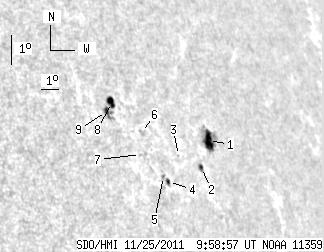

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.24 | 24.92 | 12.68 | 25.84 | 16.32 | 300.46 | 60.64 | 287.73 | 0.8802 | -606.7 | -221.4 | |
| 1.97 | 3.00 | 1.98 | 3.01 | 15.51 | 299.62 | 59.80 | 286.93 | 0.8725 | -466.3 | -428.1 | |
| 0.00 | 0.86 | 0.00 | 0.83 | 15.91 | 298.41 | 58.60 | 287.56 | 0.8630 | 290.0 | 196.3 | |
| 1.71 | 2.91 | 1.62 | 2.75 | 15.13 | 297.48 | 57.66 | 286.80 | 0.8541 | 228.1 | 62.2 | |
| 0.00 | 1.37 | 0.00 | 1.29 | 15.29 | 297.26 | 57.44 | 287.02 | 0.8523 | -462.0 | -312.4 | |
| 0.00 | 2.74 | 0.00 | 2.55 | 16.65 | 296.61 | 56.79 | 288.71 | 0.8485 | -257.0 | -138.6 | |
| 0.00 | 1.03 | 0.00 | 0.94 | 15.99 | 296.25 | 56.44 | 287.99 | 0.8444 | -539.0 | -379.6 | |
| 5.74 | 7.28 | 5.19 | 6.58 | 17.61 | 295.37 | 55.55 | 290.06 | 0.8390 | 525.0 | 348.3 | |
| 2.74 | 6.85 | 2.45 | 6.14 | 17.34 | 294.97 | 55.16 | 289.82 | 0.8349 | 655.5 | 459.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
