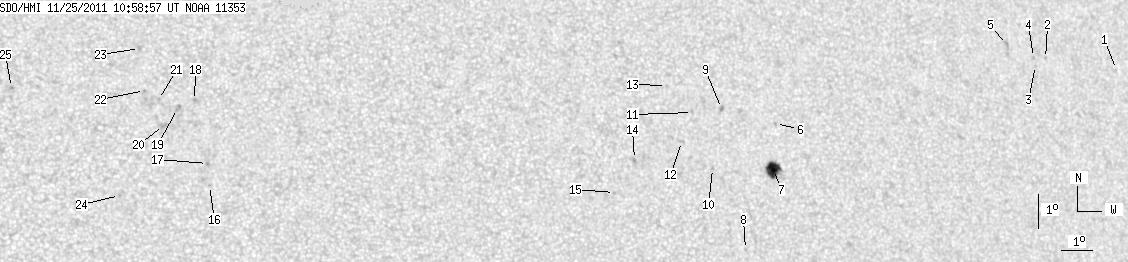

SDO HMI 2011-11-25 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.07 | 52.47 | 8.49 | 29.00 | 9.41 | 262.42 | 23.15 | 294.36 | 0.4151 | -142.8 | 165.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.62 | 11.02 | 279.97 | 40.70 | 284.87 | 0.6646 | -525.0 | -422.3 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 11.40 | 277.25 | 37.98 | 286.23 | 0.6306 | 539.0 | 466.6 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 11.19 | 276.84 | 37.57 | 286.04 | 0.6246 | 668.0 | 549.9 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 11.43 | 276.80 | 37.53 | 286.43 | 0.6248 | 604.0 | 520.8 | |
| 0.00 | 3.42 | 0.00 | 2.14 | 11.84 | 275.84 | 36.57 | 287.41 | 0.6134 | 777.0 | 676.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 9.60 | 267.31 | 28.04 | 287.02 | 0.4868 | -805.0 | -490.2 | |
| 15.07 | 17.64 | 8.49 | 9.94 | 8.22 | 267.13 | 27.86 | 284.33 | 0.4793 | -1047.5 | -756.5 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 5.86 | 266.04 | 26.77 | 279.73 | 0.4565 | -774.0 | -593.2 | |
| 0.00 | 2.14 | 0.00 | 1.19 | 10.07 | 265.53 | 26.26 | 288.96 | 0.4626 | -779.0 | -640.4 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 8.28 | 265.09 | 25.82 | 285.39 | 0.4489 | -707.0 | -558.6 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 9.96 | 264.55 | 25.28 | 289.33 | 0.4477 | -650.0 | -552.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 9.10 | 264.12 | 24.85 | 287.72 | 0.4375 | -677.0 | -587.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 10.78 | 263.76 | 24.49 | 291.64 | 0.4399 | -573.0 | -504.3 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 8.58 | 262.54 | 23.27 | 287.52 | 0.4114 | -876.0 | -753.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 7.60 | 261.83 | 22.56 | 285.61 | 0.3966 | -788.0 | -631.7 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 7.91 | 249.22 | 9.95 | 302.69 | 0.2043 | 870.0 | 675.8 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 8.56 | 249.18 | 9.91 | 305.47 | 0.2098 | 946.0 | 734.9 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 10.45 | 248.83 | 9.56 | 313.25 | 0.2254 | 835.0 | 719.7 | |
| 0.00 | 3.00 | 0.00 | 1.52 | 10.21 | 248.31 | 9.04 | 314.05 | 0.2161 | 920.0 | 719.3 | |
| 0.00 | 3.94 | 0.00 | 1.99 | 9.70 | 247.87 | 8.60 | 313.69 | 0.2048 | 902.0 | 762.3 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 10.48 | 247.74 | 8.47 | 316.81 | 0.2125 | 816.0 | 625.9 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 10.75 | 247.32 | 8.05 | 319.11 | 0.2111 | 883.0 | 676.9 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 12.01 | 247.20 | 7.93 | 323.22 | 0.2265 | 835.0 | 601.4 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 7.62 | 246.50 | 7.23 | 310.02 | 0.1635 | 841.0 | 705.0 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 10.85 | 243.29 | 4.02 | 336.75 | 0.1754 | 972.0 | 815.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
