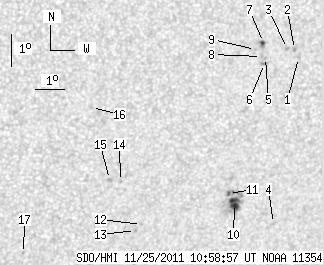

SDO HMI 2011-11-25 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.72 | 49.41 | 6.96 | 29.09 | -15.56 | 267.28 | 28.01 | 237.13 | 0.5418 | 341.5 | 381.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.61 | -12.50 | 269.32 | 30.05 | 243.83 | 0.5470 | 547.0 | 474.8 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -12.25 | 269.15 | 29.88 | 244.12 | 0.5433 | 777.0 | 611.3 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -12.22 | 268.90 | 29.63 | 244.00 | 0.5398 | 759.0 | 616.7 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -17.63 | 269.24 | 29.97 | 235.59 | 0.5793 | 602.0 | 658.7 | |
| 0.00 | 1.37 | 0.00 | 0.80 | -12.48 | 268.17 | 28.90 | 243.01 | 0.5317 | 579.0 | 556.8 | |
| 0.00 | 2.48 | 0.00 | 1.45 | -12.66 | 268.16 | 28.89 | 242.69 | 0.5326 | 584.0 | 552.1 | |
| 1.28 | 4.37 | 0.75 | 2.54 | -12.02 | 268.05 | 28.78 | 243.71 | 0.5272 | 886.7 | 685.9 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -12.45 | 268.03 | 28.76 | 242.96 | 0.5296 | 659.0 | 557.2 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -12.23 | 267.80 | 28.52 | 243.16 | 0.5252 | 748.0 | 609.9 | |
| 9.16 | 27.91 | 5.45 | 16.60 | -16.98 | 267.74 | 28.47 | 235.29 | 0.5567 | 919.5 | 587.9 | |
| 1.28 | -10.00 | 0.76 | -10.00 | -16.66 | 267.48 | 28.21 | 235.55 | 0.5512 | 881.5 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -17.59 | 264.60 | 25.33 | 231.31 | 0.5246 | -721.0 | -554.7 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -17.78 | 264.42 | 25.15 | 230.83 | 0.5241 | -739.0 | -602.9 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -16.24 | 263.69 | 24.42 | 232.52 | 0.5022 | -625.0 | -541.8 | |
| 0.00 | 2.14 | 0.00 | 1.22 | -16.17 | 263.31 | 24.04 | 232.22 | 0.4971 | -923.0 | -652.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -13.94 | 262.44 | 23.17 | 235.13 | 0.4674 | -648.0 | -386.7 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -18.46 | 260.72 | 21.45 | 225.44 | 0.4888 | -788.0 | -625.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
