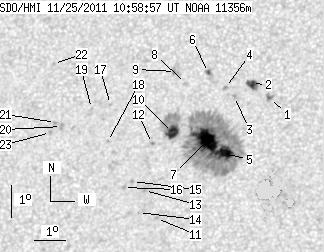

SDO HMI 2011-11-25 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.31 | 338.11 | 29.66 | 181.32 | 17.61 | 223.14 | -16.13 | 43.73 | 0.3846 | -486.3 | -337.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.94 | 3.94 | 0.50 | 2.11 | 18.84 | 225.20 | -14.07 | 37.78 | 0.3771 | 887.2 | 718.0 | |
| 6.08 | 8.22 | 3.27 | 4.41 | 19.30 | 224.58 | -14.69 | 38.16 | 0.3890 | 717.6 | 807.2 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 18.90 | 224.07 | -15.20 | 39.80 | 0.3893 | -854.0 | -581.2 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 19.17 | 223.75 | -15.52 | 39.88 | 0.3959 | -1004.0 | -747.8 | |
| 10.79 | 254.70 | 5.75 | 136.21 | 17.14 | 223.87 | -15.40 | 43.40 | 0.3710 | -1349.2 | -434.1 | |
| 1.54 | 2.83 | 0.84 | 1.53 | 19.64 | 223.15 | -16.12 | 40.13 | 0.4075 | -960.0 | -732.6 | |
| 25.86 | -5.00 | 13.85 | -5.00 | 17.56 | 223.32 | -15.95 | 43.55 | 0.3820 | -1264.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 19.29 | 222.43 | -16.84 | 41.92 | 0.4110 | -673.0 | -596.1 | |
| 0.00 | 4.88 | 0.00 | 2.66 | 19.66 | 222.06 | -17.21 | 41.88 | 0.4191 | -680.0 | -561.8 | |
| 10.10 | 40.58 | 5.45 | 21.92 | 17.77 | 222.16 | -17.11 | 45.09 | 0.3973 | -964.7 | -260.7 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 15.13 | 221.89 | -17.38 | 50.84 | 0.3735 | 869.0 | 706.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 17.43 | 221.55 | -17.72 | 46.72 | 0.4007 | -752.0 | -584.1 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 15.98 | 221.43 | -17.84 | 49.76 | 0.3876 | 963.0 | 765.7 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 15.31 | 221.29 | -17.98 | 51.37 | 0.3827 | 805.0 | 665.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 16.26 | 221.01 | -18.26 | 49.83 | 0.3954 | 883.0 | 738.0 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 16.07 | 220.74 | -18.53 | 50.60 | 0.3970 | 834.0 | 599.3 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 18.62 | 220.04 | -19.23 | 46.74 | 0.4305 | 770.0 | 554.6 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 17.48 | 220.07 | -19.20 | 48.80 | 0.4187 | 771.0 | 665.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 18.49 | 219.42 | -19.85 | 47.83 | 0.4363 | 750.0 | 576.4 | |
| 0.00 | 3.00 | 0.00 | 1.65 | 17.92 | 218.50 | -20.77 | 50.08 | 0.4419 | 822.0 | 612.7 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 18.05 | 218.28 | -20.99 | 50.13 | 0.4456 | 834.0 | 652.8 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 19.87 | 217.97 | -21.30 | 47.33 | 0.4666 | 696.0 | 522.3 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 17.74 | 218.15 | -21.12 | 50.86 | 0.4443 | 817.0 | 646.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
