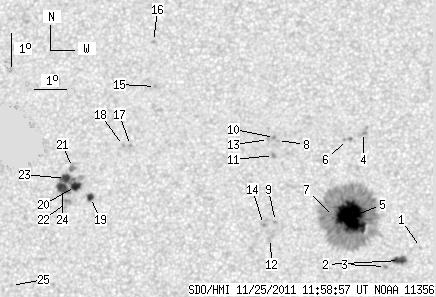

SDO HMI 2011-11-25 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.23 | 369.36 | 46.41 | 189.58 | 15.28 | 232.85 | -5.87 | 21.64 | 0.2606 | -632.6 | -324.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.65 | 14.14 | 236.36 | -2.37 | 10.46 | 0.2214 | -767.0 | -523.4 | |
| 7.19 | 7.88 | 3.65 | 4.00 | 13.75 | 235.72 | -3.00 | 13.62 | 0.2171 | -1059.1 | -869.2 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 13.56 | 235.30 | -3.43 | 15.68 | 0.2159 | -1074.0 | -835.5 | |
| 0.00 | 5.22 | 0.00 | 2.70 | 17.65 | 234.54 | -4.18 | 14.12 | 0.2860 | -981.0 | -722.1 | |
| 58.04 | 283.86 | 29.65 | 145.03 | 15.08 | 234.23 | -4.49 | 18.01 | 0.2459 | -1390.3 | -409.5 | |
| 0.00 | 2.82 | 0.00 | 1.46 | 17.43 | 234.05 | -4.67 | 15.92 | 0.2847 | -773.0 | -782.3 | |
| 0.77 | -5.00 | 0.39 | -5.00 | 15.08 | 233.68 | -5.05 | 20.05 | 0.2489 | -950.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.40 | 231.87 | -6.85 | 22.71 | 0.2962 | -990.0 | -834.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 14.92 | 231.89 | -6.83 | 26.52 | 0.2584 | -988.0 | -813.7 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 17.49 | 231.77 | -6.95 | 22.87 | 0.2983 | -1020.0 | -910.6 | |
| 0.00 | 1.97 | 0.00 | 1.02 | 16.94 | 231.76 | -6.96 | 23.69 | 0.2899 | -979.0 | -838.3 | |
| 0.00 | 3.17 | 0.00 | 1.62 | 14.40 | 231.76 | -6.97 | 27.95 | 0.2518 | -721.0 | -667.5 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 17.43 | 231.59 | -7.14 | 23.50 | 0.2985 | -925.0 | -785.9 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 14.83 | 231.53 | -7.20 | 27.91 | 0.2599 | -993.0 | -775.5 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 19.05 | 227.94 | -10.78 | 30.53 | 0.3497 | -949.0 | -768.0 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 20.45 | 227.78 | -10.94 | 28.83 | 0.3705 | -811.0 | -617.1 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 17.22 | 227.26 | -11.46 | 35.16 | 0.3310 | 959.0 | 671.1 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 17.22 | 227.04 | -11.68 | 35.67 | 0.3331 | 904.0 | 725.9 | |
| 3.51 | 4.28 | 1.84 | 2.24 | 15.63 | 226.10 | -12.62 | 40.94 | 0.3226 | 1051.7 | 805.6 | |
| 6.08 | 34.58 | 3.19 | 18.17 | 15.96 | 225.61 | -13.11 | 41.31 | 0.3320 | 1216.0 | 718.2 | |
| 0.00 | 4.19 | 0.00 | 2.21 | 16.54 | 225.47 | -13.25 | 40.41 | 0.3405 | 797.0 | 676.8 | |
| 0.00 | 6.33 | 0.00 | 3.32 | 15.47 | 225.36 | -13.37 | 42.87 | 0.3290 | 723.0 | 678.9 | |
| 5.82 | -20.00 | 3.06 | -20.00 | 16.20 | 225.28 | -13.45 | 41.50 | 0.3385 | 786.7 | 999999 | |
| 8.82 | -20.00 | 4.63 | -20.00 | 15.89 | 225.20 | -13.52 | 42.29 | 0.3357 | 998.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 12.94 | 223.79 | -14.94 | 51.87 | 0.3208 | 774.0 | 534.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
