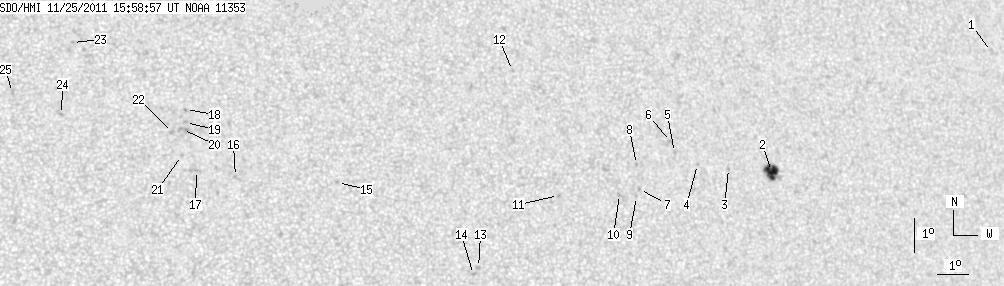

SDO HMI 2011-11-25 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.35 | 57.62 | 7.73 | 31.64 | 8.81 | 259.53 | 23.01 | 291.93 | 0.4100 | -264.4 | 34.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.40 | 0.00 | 1.55 | 11.73 | 275.71 | 39.18 | 286.38 | 0.6471 | 701.0 | 636.9 | |
| 13.35 | 18.65 | 7.73 | 10.81 | 8.27 | 267.19 | 30.67 | 283.35 | 0.5209 | -991.1 | -461.3 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 8.38 | 265.72 | 29.19 | 284.11 | 0.4996 | -631.0 | -472.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 8.51 | 264.67 | 28.14 | 284.81 | 0.4845 | -722.0 | -577.7 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 8.88 | 263.92 | 27.39 | 285.91 | 0.4747 | -644.0 | -536.2 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 9.21 | 263.81 | 27.29 | 286.64 | 0.4743 | -789.0 | -638.4 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 7.79 | 262.67 | 26.14 | 284.20 | 0.4522 | -736.0 | -585.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 8.54 | 262.62 | 26.09 | 285.83 | 0.4540 | -860.0 | -655.6 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 7.58 | 262.55 | 26.03 | 283.80 | 0.4498 | -811.0 | -662.1 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 7.65 | 261.99 | 25.47 | 284.20 | 0.4415 | -748.0 | -615.6 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 7.64 | 259.99 | 23.47 | 285.21 | 0.4108 | -857.0 | -697.5 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 11.39 | 258.76 | 22.23 | 294.86 | 0.4105 | -723.0 | -490.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 5.53 | 257.32 | 20.79 | 281.23 | 0.3618 | -817.0 | -636.1 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 5.33 | 257.15 | 20.63 | 280.74 | 0.3586 | -951.0 | -669.3 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 8.10 | 252.98 | 16.46 | 292.12 | 0.3042 | -761.0 | -598.3 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 8.30 | 249.84 | 13.31 | 297.20 | 0.2573 | 800.0 | 573.3 | |
| 0.00 | 3.77 | 0.00 | 1.92 | 8.48 | 248.65 | 12.12 | 300.06 | 0.2411 | 944.0 | 693.2 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 10.31 | 248.38 | 11.85 | 306.90 | 0.2538 | 912.0 | 736.0 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 9.92 | 248.36 | 11.84 | 305.66 | 0.2498 | 807.0 | 683.5 | |
| 0.00 | 3.51 | 0.00 | 1.79 | 9.71 | 248.26 | 11.74 | 305.19 | 0.2464 | 839.0 | 843.4 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 8.93 | 248.20 | 11.68 | 302.61 | 0.2385 | 773.0 | 540.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 9.62 | 247.95 | 11.43 | 305.59 | 0.2413 | 839.0 | 686.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 12.33 | 244.98 | 8.46 | 322.35 | 0.2363 | 847.0 | 675.4 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 10.17 | 244.59 | 8.06 | 317.21 | 0.2041 | 966.0 | 702.3 | |
| 0.00 | 2.40 | 0.00 | 1.21 | 10.84 | 243.12 | 6.59 | 324.91 | 0.1970 | 893.0 | 619.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
