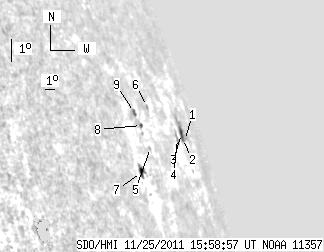

SDO HMI 2011-11-25 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.96 | 27.65 | 22.14 | 78.22 | 18.86 | 316.29 | 79.77 | 288.90 | 0.9837 | 88.4 | -28.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 12.24 | 0.93 | 43.95 | 18.74 | 318.67 | 82.15 | 288.70 | 0.9910 | 94.7 | 51.5 | |
| 1.37 | -1.00 | 4.73 | -1.00 | 18.81 | 318.38 | 81.86 | 288.78 | 0.9904 | -86.1 | 999999 | |
| 2.74 | -1.00 | 9.66 | -1.00 | 18.97 | 318.53 | 82.01 | 288.93 | 0.9907 | 172.3 | 999999 | |
| 0.00 | 3.25 | 0.00 | 10.04 | 18.84 | 317.37 | 80.85 | 288.83 | 0.9879 | -279.0 | -235.5 | |
| 0.00 | 1.11 | 0.00 | 2.34 | 18.68 | 312.74 | 76.22 | 288.83 | 0.9732 | -178.0 | -197.1 | |
| 0.00 | 1.37 | 0.00 | 3.23 | 19.93 | 314.24 | 77.72 | 290.04 | 0.9788 | -242.0 | -230.2 | |
| 2.65 | 6.25 | 4.90 | 11.60 | 17.95 | 310.70 | 74.17 | 288.19 | 0.9646 | 280.3 | 39.3 | |
| 0.00 | 1.03 | 0.00 | 2.15 | 19.38 | 312.53 | 76.01 | 289.56 | 0.9725 | -37.0 | -63.2 | |
| 0.94 | 2.40 | 1.92 | 4.91 | 19.79 | 312.21 | 75.69 | 290.00 | 0.9714 | 171.2 | 119.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
