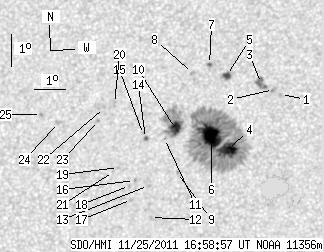

SDO HMI 2011-11-25 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.13 | 346.45 | 32.81 | 183.05 | 17.57 | 223.21 | -12.77 | 37.36 | 0.3486 | -588.1 | -302.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.45 | 18.88 | 225.42 | -10.55 | 30.23 | 0.3455 | 925.0 | 751.2 | |
| 0.00 | 2.40 | 0.00 | 1.27 | 19.03 | 225.19 | -10.78 | 30.53 | 0.3496 | 953.0 | 769.4 | |
| 0.00 | 8.56 | 0.00 | 4.53 | 19.22 | 224.80 | -11.18 | 31.14 | 0.3555 | 833.0 | 721.3 | |
| 19.77 | 261.40 | 10.39 | 137.80 | 17.17 | 223.85 | -12.12 | 36.73 | 0.3369 | -1285.2 | -419.0 | |
| 3.85 | 4.96 | 2.05 | 2.64 | 19.46 | 223.66 | -12.32 | 33.22 | 0.3687 | -1039.6 | -832.4 | |
| 26.70 | -4.00 | 14.09 | -4.00 | 17.60 | 223.32 | -12.66 | 37.11 | 0.3477 | -1326.4 | 999999 | |
| 0.43 | 1.63 | 0.23 | 0.87 | 19.80 | 223.08 | -12.89 | 33.87 | 0.3783 | -939.0 | -707.7 | |
| 0.00 | 2.22 | 0.00 | 1.19 | 19.51 | 222.56 | -13.41 | 35.37 | 0.3794 | -693.0 | -666.5 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 16.46 | 222.32 | -13.65 | 41.38 | 0.3440 | -716.0 | -588.3 | |
| 9.84 | 41.76 | 5.23 | 22.20 | 17.81 | 222.15 | -13.82 | 39.12 | 0.3621 | -1018.2 | -330.9 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 17.50 | 221.83 | -14.15 | 40.34 | 0.3617 | -516.0 | -368.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 15.08 | 221.56 | -14.41 | 45.80 | 0.3367 | 894.0 | 750.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 16.06 | 221.43 | -14.55 | 43.96 | 0.3492 | 857.0 | 760.2 | |
| 1.54 | 1.54 | 0.82 | 0.82 | 17.49 | 221.22 | -14.76 | 41.50 | 0.3682 | -653.7 | 0.0 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 17.62 | 221.14 | -14.83 | 41.41 | 0.3704 | -350.0 | -392.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 16.20 | 220.97 | -15.00 | 44.51 | 0.3561 | 915.0 | 766.8 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 15.62 | 220.92 | -15.05 | 45.83 | 0.3503 | 792.0 | 535.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 16.05 | 220.82 | -15.15 | 45.10 | 0.3561 | 725.0 | 548.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 16.60 | 220.43 | -15.55 | 44.70 | 0.3668 | 857.0 | 635.2 | |
| 0.00 | 2.22 | 0.00 | 1.20 | 18.57 | 220.12 | -15.85 | 41.51 | 0.3924 | 826.0 | 720.8 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 16.48 | 220.28 | -15.70 | 45.22 | 0.3671 | 603.0 | 454.9 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 18.44 | 219.81 | -16.16 | 42.27 | 0.3943 | 797.0 | 696.0 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 18.04 | 219.65 | -16.32 | 43.27 | 0.3915 | 845.0 | 664.0 | |
| 0.00 | 2.82 | 0.00 | 1.53 | 17.97 | 218.36 | -17.61 | 45.51 | 0.4053 | 796.0 | 600.4 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 18.21 | 217.78 | -18.20 | 45.95 | 0.4145 | 788.0 | 651.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
