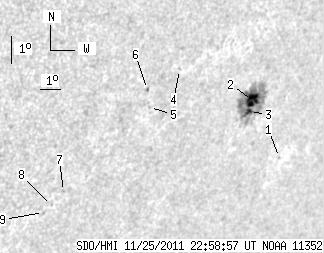

SDO HMI 2011-11-25 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.43 | 80.70 | 11.82 | 70.61 | -23.85 | 283.48 | 50.82 | 239.33 | 0.8263 | 428.7 | 248.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-25 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.98 | -25.62 | 286.44 | 53.78 | 238.43 | 0.8559 | 519.0 | 418.8 | |
| 10.95 | 74.20 | 9.63 | 65.33 | -23.68 | 283.82 | 51.16 | 239.67 | 0.8287 | 809.2 | 280.4 | |
| 2.48 | -2.00 | 2.19 | -2.00 | -24.04 | 283.87 | 51.21 | 239.27 | 0.8302 | 636.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.89 | -22.58 | 279.67 | 47.01 | 239.29 | 0.7879 | 523.0 | 499.7 | |
| 0.00 | 0.68 | 0.00 | 0.54 | -23.80 | 278.81 | 46.16 | 237.47 | 0.7850 | -496.0 | -430.0 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -23.20 | 278.45 | 45.79 | 238.01 | 0.7791 | -372.0 | -347.3 | |
| 0.00 | 1.11 | 0.00 | 0.87 | -26.52 | 276.11 | 43.45 | 232.97 | 0.7732 | -522.0 | -409.2 | |
| 0.00 | 0.77 | 0.00 | 0.60 | -26.98 | 275.78 | 43.12 | 232.26 | 0.7727 | -335.0 | -289.1 | |
| 0.00 | 0.86 | 0.00 | 0.66 | -27.21 | 275.53 | 42.87 | 231.86 | 0.7716 | -435.0 | -343.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
