SDO HMI 2011-11-25 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.97 | 70.27 | 11.04 | 41.29 | 9.65 | 263.10 | 30.44 | 287.96 | 0.5201 | -223.4 | -118.0 | |
|
previous
or next observation for the same group /

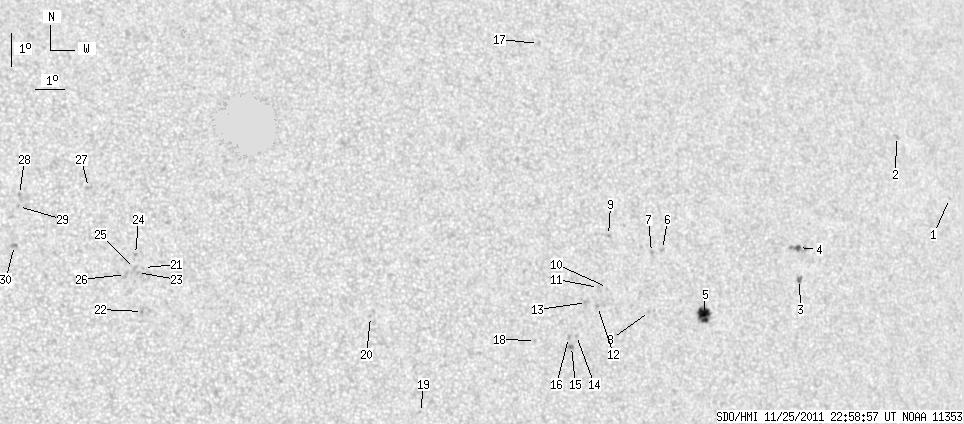

back to the solar disc SDO HMI 2011-11-25 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.73 | 11.58 | 277.40 | 44.74 | 284.73 | 0.7154 | 484.0 | 387.8 | |
| 0.00 | 1.97 | 0.00 | 1.36 | 13.48 | 275.58 | 42.92 | 287.86 | 0.6981 | 668.0 | 570.6 | |
| 2.48 | 3.17 | 1.58 | 2.01 | 9.26 | 270.97 | 38.31 | 282.84 | 0.6299 | 500.0 | 315.2 | |
| 2.48 | 8.56 | 1.58 | 5.46 | 10.22 | 271.06 | 38.41 | 284.31 | 0.6333 | -756.8 | -566.5 | |
| 13.01 | 17.72 | 7.88 | 10.73 | 8.28 | 267.27 | 34.62 | 282.18 | 0.5773 | -910.9 | -484.8 | |
| 0.00 | 1.80 | 0.00 | 1.08 | 10.24 | 266.01 | 33.35 | 285.98 | 0.5649 | -582.0 | -455.2 | |
| 0.00 | 2.14 | 0.00 | 1.28 | 10.15 | 265.60 | 32.94 | 285.98 | 0.5590 | -826.0 | -620.7 | |
| 0.00 | 1.28 | 0.00 | 0.76 | 8.39 | 265.34 | 32.69 | 282.95 | 0.5504 | -711.0 | -399.0 | |
| 0.00 | 1.71 | 0.00 | 1.01 | 10.68 | 264.13 | 31.47 | 287.53 | 0.5402 | -887.0 | -695.3 | |
| 0.00 | 0.34 | 0.00 | 0.20 | 9.13 | 263.93 | 31.27 | 284.78 | 0.5322 | -514.0 | -507.2 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 9.13 | 263.61 | 30.96 | 284.91 | 0.5277 | -623.0 | -530.3 | |
| 0.00 | 1.37 | 0.00 | 0.80 | 8.57 | 263.53 | 30.87 | 283.89 | 0.5247 | -756.0 | -598.0 | |
| 0.00 | 3.25 | 0.00 | 1.88 | 8.69 | 263.15 | 30.50 | 284.26 | 0.5197 | -664.0 | -545.9 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 7.72 | 262.72 | 30.07 | 282.54 | 0.5107 | -739.0 | -537.9 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 7.39 | 262.53 | 29.87 | 281.98 | 0.5069 | -820.0 | -779.8 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 7.66 | 262.44 | 29.79 | 282.53 | 0.5064 | -661.0 | -576.2 | |
| 0.00 | 1.88 | 0.00 | 1.11 | 16.52 | 262.49 | 29.83 | 298.72 | 0.5459 | -688.0 | -475.8 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 7.59 | 261.31 | 28.65 | 282.79 | 0.4894 | -737.0 | -635.5 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 5.50 | 257.35 | 24.69 | 279.64 | 0.4236 | -740.0 | -615.7 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 8.36 | 255.87 | 23.22 | 287.13 | 0.4099 | -792.0 | -664.4 | |
| 0.00 | 0.26 | 0.00 | 0.13 | 9.89 | 248.73 | 16.07 | 298.08 | 0.3105 | 633.0 | 499.3 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 8.58 | 248.64 | 15.98 | 294.28 | 0.3000 | 943.0 | 766.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 9.74 | 248.54 | 15.88 | 297.92 | 0.3066 | 837.0 | 668.1 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 10.28 | 248.50 | 15.84 | 299.54 | 0.3101 | 861.0 | 687.4 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 9.86 | 248.45 | 15.79 | 298.40 | 0.3062 | 838.0 | 591.9 | |
| 0.00 | 2.82 | 0.00 | 1.47 | 9.69 | 248.16 | 15.50 | 298.30 | 0.3006 | 775.0 | 745.5 | |
| 0.00 | 2.40 | 0.00 | 1.25 | 12.30 | 247.14 | 14.48 | 307.39 | 0.3090 | 848.0 | 694.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 12.11 | 244.98 | 12.33 | 311.27 | 0.2790 | 1076.0 | 818.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 11.75 | 244.94 | 12.28 | 310.36 | 0.2745 | 917.0 | 695.9 | |
| 0.00 | 2.82 | 0.00 | 1.45 | 10.58 | 244.76 | 12.11 | 307.26 | 0.2602 | 944.0 | 787.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
