SDO HMI 2011-11-26 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.27 | 379.06 | 30.80 | 193.68 | 15.39 | 233.01 | 2.00 | 351.72 | 0.2468 | -836.9 | -364.0 | |
|
previous
or next observation for the same group /

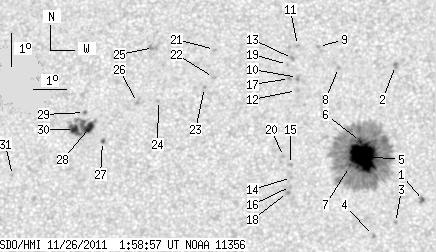

back to the solar disc SDO HMI 2011-11-26 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 2.74 | 0.22 | 1.39 | 13.83 | 235.90 | 4.89 | 338.72 | 0.2292 | -986.8 | -903.4 | |
| 0.00 | 2.48 | 0.00 | 1.28 | 17.96 | 235.13 | 4.12 | 346.39 | 0.2918 | -901.0 | -752.8 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 13.17 | 235.03 | 4.03 | 341.24 | 0.2135 | -1038.0 | -798.1 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 12.78 | 234.36 | 3.35 | 343.67 | 0.2037 | -930.0 | -684.5 | |
| 46.40 | 305.26 | 23.68 | 155.79 | 15.17 | 234.09 | 3.08 | 347.58 | 0.2421 | -1539.9 | -434.4 | |
| 1.11 | -5.00 | 0.57 | -5.00 | 15.63 | 234.00 | 2.99 | 348.31 | 0.2494 | -1082.5 | 999999 | |
| 0.60 | -5.00 | 0.31 | -5.00 | 14.87 | 233.65 | 2.65 | 349.03 | 0.2355 | -1124.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 17.90 | 233.35 | 2.35 | 352.12 | 0.2853 | -783.0 | -680.2 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 18.55 | 232.74 | 1.73 | 354.41 | 0.2949 | -763.0 | -598.3 | |
| 0.00 | 2.14 | 0.00 | 1.10 | 17.59 | 232.07 | 1.07 | 356.32 | 0.2780 | -929.0 | -777.2 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 18.58 | 232.08 | 1.07 | 356.53 | 0.2945 | -894.0 | -682.0 | |
| 0.00 | 2.31 | 0.00 | 1.19 | 17.19 | 232.04 | 1.03 | 356.34 | 0.2712 | -757.0 | -630.3 | |
| 0.00 | 1.88 | 0.00 | 0.97 | 18.18 | 231.92 | 0.92 | 356.96 | 0.2876 | -958.0 | -730.1 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 14.54 | 231.87 | 0.87 | 356.26 | 0.2260 | -913.0 | -685.1 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 14.93 | 231.85 | 0.84 | 356.50 | 0.2327 | -1000.0 | -741.5 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 14.26 | 231.84 | 0.84 | 356.32 | 0.2213 | -961.0 | -730.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 17.56 | 231.83 | 0.82 | 357.17 | 0.2772 | -1021.0 | -777.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 14.08 | 231.75 | 0.74 | 356.67 | 0.2181 | -1114.0 | -862.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.99 | 231.77 | 0.76 | 357.45 | 0.2844 | -824.0 | -712.9 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 15.17 | 231.63 | 0.63 | 357.43 | 0.2366 | -879.0 | -689.1 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 18.46 | 229.49 | -1.51 | 4.93 | 0.2930 | -761.0 | -658.1 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 17.59 | 229.47 | -1.54 | 5.30 | 0.2786 | -942.0 | -715.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 17.28 | 229.19 | -1.81 | 6.37 | 0.2739 | -892.0 | -775.4 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 16.88 | 227.77 | -3.23 | 11.55 | 0.2709 | 878.0 | 682.7 | |
| 0.00 | 3.51 | 0.00 | 1.82 | 18.52 | 227.59 | -3.42 | 10.98 | 0.2984 | -782.0 | -759.0 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 16.82 | 227.12 | -3.88 | 13.84 | 0.2723 | 1046.0 | 883.9 | |
| 1.20 | 1.63 | 0.61 | 0.83 | 15.63 | 226.07 | -4.94 | 18.83 | 0.2580 | 886.9 | 768.4 | |
| 6.25 | 33.04 | 3.21 | 16.99 | 16.05 | 225.66 | -5.35 | 19.70 | 0.2671 | 1142.4 | 786.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 16.51 | 225.49 | -5.52 | 19.66 | 0.2753 | 832.0 | 705.0 | |
| 4.28 | -28.00 | 2.20 | -28.00 | 15.99 | 225.19 | -5.81 | 21.33 | 0.2688 | 1081.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 14.58 | 223.33 | -7.68 | 29.84 | 0.2612 | 921.0 | 772.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
