SDO HMI 2011-11-26 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.61 | 351.51 | 30.99 | 179.67 | 15.35 | 233.13 | 2.67 | 349.11 | 0.2480 | -818.7 | -386.4 | |
|
previous
or next observation for the same group /

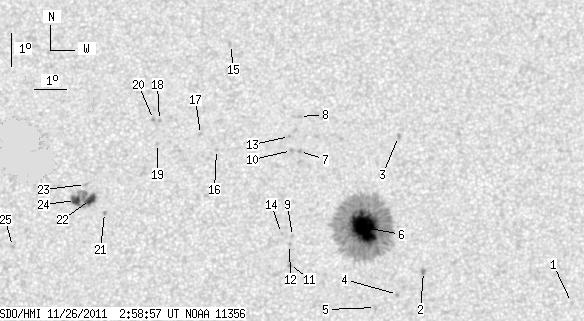

back to the solar disc SDO HMI 2011-11-26 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.83 | 12.90 | 240.35 | 9.90 | 319.64 | 0.2599 | 576.0 | 521.7 | |
| 0.00 | 2.57 | 0.00 | 1.31 | 13.85 | 235.84 | 5.38 | 336.85 | 0.2328 | -1174.0 | -916.8 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 17.98 | 235.17 | 4.72 | 344.54 | 0.2948 | -899.0 | -762.9 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 13.16 | 235.03 | 4.58 | 338.89 | 0.2167 | -1097.0 | -832.1 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 12.77 | 234.36 | 3.90 | 341.17 | 0.2065 | -900.0 | -648.0 | |
| 48.11 | 291.84 | 24.57 | 149.04 | 15.19 | 234.06 | 3.60 | 345.58 | 0.2446 | -1536.4 | -452.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 17.52 | 232.09 | 1.63 | 354.37 | 0.2777 | -1073.0 | -827.7 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 18.60 | 232.10 | 1.64 | 354.72 | 0.2957 | -772.0 | -593.2 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 14.92 | 231.85 | 1.39 | 354.20 | 0.2334 | -907.0 | -666.2 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 17.55 | 231.84 | 1.38 | 355.24 | 0.2778 | -1022.0 | -767.1 | |
| 0.00 | 2.05 | 0.00 | 1.04 | 14.07 | 231.75 | 1.30 | 354.22 | 0.2188 | -916.0 | -743.0 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 14.68 | 231.76 | 1.30 | 354.48 | 0.2292 | -755.0 | -608.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.98 | 231.78 | 1.32 | 355.56 | 0.2850 | -912.0 | -720.1 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 15.01 | 231.51 | 1.06 | 355.63 | 0.2345 | -642.0 | -530.9 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 20.85 | 229.94 | -0.52 | 1.48 | 0.3319 | -730.0 | -598.1 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 17.58 | 229.51 | -0.95 | 3.26 | 0.2778 | -844.0 | -654.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 18.05 | 229.01 | -1.45 | 4.83 | 0.2862 | -793.0 | -705.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 18.48 | 227.73 | -2.73 | 8.82 | 0.2959 | -970.0 | -795.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 17.77 | 227.68 | -2.78 | 9.40 | 0.2843 | -845.0 | -631.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 18.51 | 227.54 | -2.92 | 9.40 | 0.2969 | -869.0 | -709.7 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 15.65 | 226.08 | -4.38 | 16.81 | 0.2556 | 1186.0 | 923.8 | |
| 6.25 | 26.80 | 3.21 | 13.76 | 16.04 | 225.64 | -4.82 | 17.89 | 0.2642 | 1154.9 | 863.4 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 16.50 | 225.47 | -4.99 | 17.91 | 0.2724 | 829.0 | 664.3 | |
| 6.25 | -22.00 | 3.21 | -22.00 | 16.01 | 225.17 | -5.29 | 19.52 | 0.2662 | 996.5 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 14.61 | 223.27 | -7.19 | 28.17 | 0.2576 | 987.0 | 706.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
