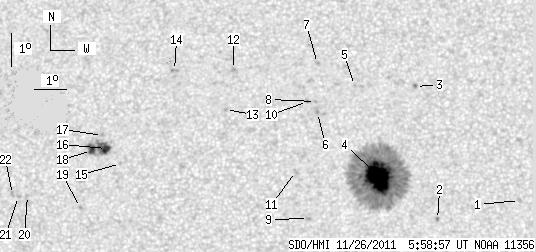

SDO HMI 2011-11-26 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.87 | 330.82 | 28.09 | 169.43 | 15.38 | 233.09 | 4.27 | 343.40 | 0.2553 | -807.4 | -383.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.14 | 0.00 | 1.10 | 14.48 | 238.34 | 9.53 | 324.48 | 0.2771 | -761.0 | -480.4 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 13.92 | 235.80 | 6.98 | 331.22 | 0.2461 | -1025.0 | -901.1 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 17.98 | 235.25 | 6.43 | 339.39 | 0.3041 | -963.0 | -753.5 | |
| 46.40 | 279.62 | 23.75 | 143.14 | 15.23 | 234.02 | 5.20 | 339.74 | 0.2537 | -1534.3 | -467.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.02 | 233.35 | 4.53 | 345.19 | 0.2950 | -852.0 | -709.7 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 17.19 | 232.18 | 3.36 | 348.29 | 0.2769 | -1003.0 | -804.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 18.70 | 232.21 | 3.39 | 349.27 | 0.3019 | -748.0 | -671.0 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 17.53 | 232.12 | 3.30 | 348.73 | 0.2823 | -868.0 | -715.1 | |
| 0.00 | 1.97 | 0.00 | 1.00 | 13.96 | 231.85 | 3.03 | 346.59 | 0.2223 | -1079.0 | -799.6 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 17.53 | 231.87 | 3.05 | 349.56 | 0.2815 | -956.0 | -735.9 | |
| 0.00 | 2.23 | 0.00 | 1.14 | 15.38 | 231.47 | 2.65 | 349.45 | 0.2447 | -746.0 | -613.3 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 18.52 | 229.58 | 0.76 | 357.53 | 0.2937 | -960.0 | -698.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 17.28 | 229.33 | 0.51 | 358.22 | 0.2729 | -880.0 | -678.8 | |
| 0.00 | 2.91 | 0.00 | 1.51 | 18.49 | 227.74 | -1.08 | 3.51 | 0.2935 | -835.0 | -755.4 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 15.63 | 226.10 | -2.72 | 10.64 | 0.2490 | 1014.0 | 773.6 | |
| 4.62 | 22.94 | 2.37 | 11.76 | 16.08 | 225.66 | -3.16 | 11.90 | 0.2580 | 1170.2 | 870.9 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 16.48 | 225.53 | -3.29 | 12.04 | 0.2651 | 653.0 | 595.3 | |
| 3.85 | -16.00 | 1.97 | -16.00 | 16.02 | 225.20 | -3.62 | 13.64 | 0.2587 | 1084.7 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 14.29 | 224.89 | -3.93 | 16.73 | 0.2317 | 820.0 | 662.8 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 14.65 | 223.26 | -5.56 | 22.44 | 0.2468 | 851.0 | 711.0 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 14.62 | 222.98 | -5.84 | 23.48 | 0.2481 | 845.0 | 693.6 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 14.68 | 222.80 | -6.02 | 24.04 | 0.2503 | 1005.0 | 785.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
