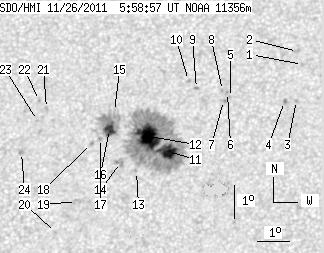

SDO HMI 2011-11-26 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.43 | 320.45 | 29.22 | 166.02 | 17.64 | 223.32 | -5.49 | 18.19 | 0.2941 | -648.8 | -347.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.63 | 19.95 | 228.08 | -0.74 | 2.21 | 0.3176 | -755.0 | -529.9 | |
| 0.00 | 2.31 | 0.00 | 1.21 | 20.35 | 227.92 | -0.90 | 2.62 | 0.3244 | -538.0 | -565.4 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 18.83 | 227.89 | -0.93 | 2.94 | 0.2990 | -805.0 | -614.5 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 18.79 | 227.52 | -1.30 | 4.14 | 0.2989 | -786.0 | -740.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 18.92 | 225.83 | -2.99 | 9.38 | 0.3043 | 705.0 | 661.5 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 19.07 | 225.73 | -3.09 | 9.59 | 0.3071 | 857.0 | 790.2 | |
| 0.00 | 1.97 | 0.00 | 1.02 | 18.82 | 225.61 | -3.21 | 10.10 | 0.3034 | 894.0 | 742.7 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 19.13 | 225.57 | -3.25 | 10.03 | 0.3086 | 782.0 | 627.9 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 19.19 | 224.75 | -4.06 | 12.43 | 0.3122 | 740.0 | 575.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 19.44 | 224.50 | -4.32 | 13.00 | 0.3172 | 788.0 | 537.8 | |
| 16.44 | 246.49 | 8.49 | 127.56 | 17.25 | 223.90 | -4.92 | 16.82 | 0.2844 | -1315.3 | -431.2 | |
| 30.74 | -11.00 | 15.92 | -11.00 | 17.71 | 223.29 | -5.52 | 18.21 | 0.2947 | -1276.0 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 16.63 | 222.95 | -5.86 | 20.59 | 0.2797 | -325.0 | -400.6 | |
| 0.00 | 5.56 | 0.00 | 2.88 | 16.91 | 222.45 | -6.37 | 21.81 | 0.2870 | -796.0 | -486.1 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 18.48 | 222.20 | -6.61 | 20.54 | 0.3128 | -23.0 | -7.8 | |
| 9.25 | 37.24 | 4.81 | 19.38 | 17.92 | 222.07 | -6.75 | 21.61 | 0.3051 | -1054.0 | -355.4 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 17.64 | 221.80 | -7.02 | 22.76 | 0.3025 | -801.0 | -508.2 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 17.49 | 221.52 | -7.30 | 23.76 | 0.3020 | -699.0 | -536.4 | |
| 0.00 | 4.02 | 0.00 | 2.07 | 15.71 | 221.13 | -7.69 | 27.73 | 0.2782 | 461.0 | 657.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 14.76 | 220.51 | -8.31 | 31.37 | 0.2696 | 827.0 | 597.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 18.56 | 220.06 | -8.76 | 26.22 | 0.3283 | 1044.0 | 787.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 18.81 | 219.82 | -8.99 | 26.46 | 0.3336 | 734.0 | 646.2 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 18.19 | 219.79 | -9.02 | 27.44 | 0.3248 | 793.0 | 568.0 | |
| 0.00 | 2.31 | 0.00 | 1.21 | 17.20 | 219.34 | -9.48 | 30.18 | 0.3143 | 869.0 | 675.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
