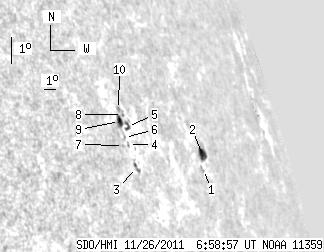

SDO HMI 2011-11-26 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.10 | 29.63 | 14.96 | 42.69 | 16.87 | 297.65 | 69.37 | 287.47 | 0.9391 | 77.6 | 112.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 3.11 | 16.03 | 300.61 | 72.34 | 286.32 | 0.9557 | -323.0 | -240.5 | |
| 5.14 | 10.19 | 8.66 | 17.27 | 16.48 | 300.94 | 72.66 | 286.78 | 0.9574 | -338.1 | -84.6 | |
| 0.00 | 3.08 | 0.00 | 3.92 | 16.22 | 294.81 | 66.54 | 286.99 | 0.9227 | 456.0 | 244.1 | |
| 0.00 | 1.37 | 0.00 | 1.74 | 16.94 | 294.68 | 66.40 | 287.78 | 0.9223 | 333.0 | 218.6 | |
| 1.28 | 3.17 | 1.65 | 4.07 | 17.49 | 294.99 | 66.72 | 288.34 | 0.9247 | 333.9 | 311.8 | |
| 0.00 | 1.46 | 0.00 | 1.84 | 17.16 | 294.52 | 66.25 | 288.03 | 0.9214 | 317.0 | 356.6 | |
| 0.00 | 0.77 | 0.00 | 0.96 | 16.92 | 294.27 | 66.00 | 287.79 | 0.9196 | -479.0 | -320.0 | |
| 0.00 | 1.28 | 0.00 | 1.65 | 17.86 | 294.88 | 66.60 | 288.75 | 0.9242 | 454.0 | 332.5 | |
| 3.68 | 4.97 | 4.65 | 6.28 | 17.65 | 294.49 | 66.21 | 288.57 | 0.9216 | 604.2 | 479.7 | |
| 0.00 | 1.46 | 0.00 | 1.85 | 18.02 | 294.68 | 66.41 | 288.95 | 0.9231 | 513.0 | 445.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
