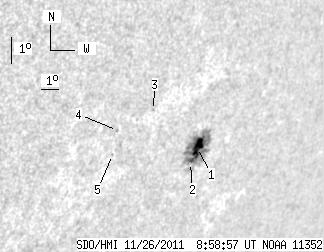

SDO HMI 2011-11-26 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.47 | 70.54 | 11.48 | 70.38 | -23.70 | 283.51 | 56.33 | 241.41 | 0.8698 | 610.0 | 192.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.70 | 68.05 | 10.71 | 68.16 | -23.69 | 283.65 | 56.47 | 241.47 | 0.8709 | 781.5 | 199.6 | |
| 0.77 | -1.00 | 0.77 | -1.00 | -24.18 | 283.57 | 56.39 | 240.91 | 0.8714 | 606.8 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.70 | -22.41 | 280.40 | 53.22 | 241.88 | 0.8417 | 580.0 | 504.2 | |
| 0.00 | 0.86 | 0.00 | 0.76 | -23.03 | 278.83 | 51.65 | 240.64 | 0.8303 | -189.0 | -148.3 | |
| 0.00 | 0.86 | 0.00 | 0.76 | -23.81 | 279.00 | 51.82 | 239.80 | 0.8342 | -395.0 | -314.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
