SDO HMI 2011-11-26 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.28 | 300.69 | 26.50 | 155.41 | 17.57 | 223.29 | -3.89 | 13.14 | 0.2858 | -653.9 | -359.8 | |
|
previous
or next observation for the same group /

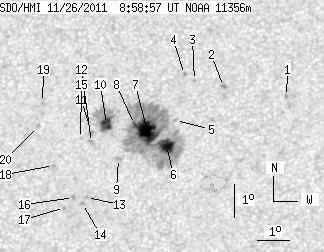

back to the solar disc SDO HMI 2011-11-26 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.67 | 18.78 | 227.66 | 0.48 | 358.46 | 0.2982 | -856.0 | -734.7 | |
| 0.00 | 2.31 | 0.00 | 1.20 | 19.09 | 225.69 | -1.49 | 4.65 | 0.3043 | 917.0 | 773.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 19.27 | 224.78 | -2.40 | 7.38 | 0.3090 | 691.0 | 502.4 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 19.46 | 224.47 | -2.72 | 8.25 | 0.3128 | 703.0 | 528.5 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 18.03 | 224.21 | -2.97 | 9.84 | 0.2900 | -520.0 | -430.2 | |
| 15.32 | 241.39 | 7.90 | 124.68 | 17.26 | 223.94 | -3.24 | 11.25 | 0.2781 | -1294.2 | -435.0 | |
| 25.17 | -6.00 | 13.01 | -6.00 | 17.69 | 223.34 | -3.84 | 12.89 | 0.2872 | -1310.4 | 999999 | |
| 1.20 | -6.00 | 0.62 | -6.00 | 17.91 | 222.93 | -4.25 | 14.02 | 0.2923 | -821.4 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.19 | 16.86 | 222.46 | -4.72 | 16.57 | 0.2775 | -747.0 | -610.0 | |
| 9.59 | 34.15 | 4.97 | 17.72 | 17.90 | 222.06 | -5.12 | 16.75 | 0.2962 | -1074.9 | -370.0 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 17.66 | 221.60 | -5.58 | 18.43 | 0.2946 | -704.0 | -559.5 | |
| 0.00 | 2.65 | 0.00 | 1.37 | 17.35 | 221.61 | -5.57 | 18.75 | 0.2897 | -53.0 | 23.7 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 15.66 | 221.50 | -5.68 | 21.28 | 0.2637 | 828.0 | 624.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.48 | 221.39 | -5.80 | 21.95 | 0.2616 | 993.0 | 816.8 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 17.47 | 221.26 | -5.92 | 19.68 | 0.2935 | -436.0 | -366.1 | |
| 0.00 | 1.97 | 0.00 | 1.01 | 15.66 | 221.10 | -6.08 | 22.63 | 0.2663 | 1018.0 | 814.4 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 15.36 | 220.83 | -6.35 | 24.00 | 0.2633 | 888.0 | 737.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 16.64 | 220.45 | -6.73 | 23.27 | 0.2856 | 875.0 | 759.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.58 | 220.03 | -7.15 | 21.89 | 0.3179 | 919.0 | 790.8 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 17.84 | 219.94 | -7.25 | 23.11 | 0.3072 | 817.0 | 722.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
