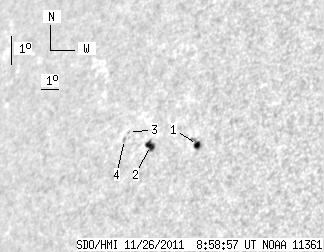

SDO HMI 2011-11-26 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.56 | 16.10 | 7.84 | 14.80 | 19.58 | 171.48 | -55.70 | 67.57 | 0.8438 | -349.7 | -137.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.91 | 6.68 | 2.56 | 5.88 | 19.60 | 173.29 | -53.89 | 67.16 | 0.8281 | -616.5 | -446.1 | |
| 5.65 | 6.85 | 5.28 | 6.41 | 19.51 | 170.73 | -56.45 | 67.83 | 0.8504 | -516.7 | -376.9 | |
| 0.00 | 0.77 | 0.00 | 0.75 | 19.89 | 169.24 | -57.95 | 67.70 | 0.8635 | 428.0 | 352.4 | |
| 0.00 | 1.80 | 0.00 | 1.76 | 19.67 | 169.13 | -58.06 | 67.97 | 0.8641 | 437.0 | 391.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
