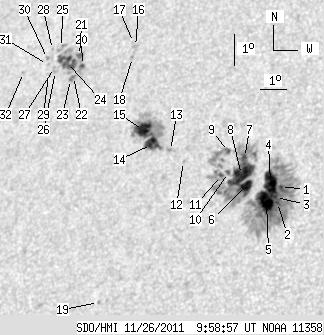

SDO HMI 2011-11-26 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.70 | 523.84 | 83.34 | 330.13 | 19.53 | 192.28 | -34.35 | 59.41 | 0.6186 | -104.9 | -181.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 232.81 | 0.73 | 141.74 | 18.78 | 194.96 | -31.68 | 58.84 | 0.5833 | -1016.9 | -472.3 | |
| 1.20 | -1.00 | 0.73 | -1.00 | 18.28 | 194.95 | -31.69 | 59.62 | 0.5804 | -1287.7 | 999999 | |
| 1.37 | -1.00 | 0.83 | -1.00 | 18.44 | 194.84 | -31.79 | 59.45 | 0.5826 | -1341.5 | 999999 | |
| 19.77 | -1.00 | 12.09 | -1.00 | 18.90 | 194.56 | -32.07 | 58.93 | 0.5888 | -989.3 | 999999 | |
| 19.94 | -1.00 | 12.16 | -1.00 | 18.31 | 194.54 | -32.10 | 59.86 | 0.5855 | -1134.0 | 999999 | |
| 8.47 | 116.83 | 5.23 | 72.48 | 18.79 | 193.69 | -32.94 | 59.67 | 0.5987 | -1035.9 | -346.6 | |
| 2.65 | -6.00 | 1.65 | -6.00 | 19.66 | 193.42 | -33.22 | 58.54 | 0.6070 | -710.6 | 999999 | |
| 20.03 | -6.00 | 12.42 | -6.00 | 19.13 | 193.43 | -33.21 | 59.33 | 0.6038 | -868.0 | 999999 | |
| 1.54 | 21.83 | 0.97 | 13.73 | 19.84 | 192.77 | -33.86 | 58.70 | 0.6157 | -472.7 | -8.2 | |
| 1.80 | 2.48 | 1.12 | 1.55 | 19.19 | 192.93 | -33.71 | 59.57 | 0.6101 | -451.6 | -362.9 | |
| 1.46 | 12.92 | 0.91 | 8.10 | 19.09 | 192.69 | -33.95 | 59.87 | 0.6125 | -516.8 | -95.4 | |
| 0.00 | 1.11 | 0.00 | 0.71 | 19.50 | 191.13 | -35.50 | 60.19 | 0.6332 | 720.0 | 514.8 | |
| 0.00 | 3.00 | 0.00 | 1.93 | 19.84 | 190.54 | -36.09 | 60.05 | 0.6419 | 757.0 | 551.2 | |
| 12.84 | 68.65 | 8.36 | 44.98 | 20.02 | 189.75 | -36.89 | 60.25 | 0.6520 | 929.2 | 466.1 | |
| 18.06 | -14.00 | 11.86 | -14.00 | 20.45 | 189.31 | -37.33 | 59.88 | 0.6592 | 906.8 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.45 | 23.09 | 188.16 | -38.48 | 56.90 | 0.6856 | 692.0 | 561.0 | |
| 0.00 | 1.20 | 0.00 | 0.82 | 23.21 | 188.04 | -38.60 | 56.80 | 0.6876 | 399.0 | 393.0 | |
| 0.00 | 1.46 | 0.00 | 0.99 | 22.74 | 188.16 | -38.48 | 57.37 | 0.6838 | 641.0 | 573.4 | |
| 0.00 | 1.20 | 0.00 | 0.77 | 15.12 | 188.86 | -37.78 | 67.85 | 0.6408 | -648.0 | -547.6 | |
| 1.54 | 42.80 | 1.07 | 29.97 | 22.45 | 186.17 | -40.46 | 58.80 | 0.7036 | 875.6 | 605.3 | |
| 2.40 | -20.00 | 1.67 | -20.00 | 22.77 | 185.93 | -40.70 | 58.50 | 0.7076 | 716.1 | 999999 | |
| 0.94 | 2.82 | 0.66 | 1.97 | 22.10 | 185.92 | -40.72 | 59.39 | 0.7047 | 819.3 | 672.4 | |
| 0.43 | -22.00 | 0.30 | -22.00 | 22.00 | 185.82 | -40.81 | 59.56 | 0.7052 | 711.0 | 999999 | |
| 15.06 | -20.00 | 10.58 | -20.00 | 22.54 | 185.51 | -41.13 | 59.01 | 0.7111 | 771.7 | 999999 | |
| 0.00 | 4.54 | 0.00 | 3.21 | 23.01 | 185.07 | -41.56 | 58.61 | 0.7177 | 592.0 | 480.7 | |
| 0.00 | 1.71 | 0.00 | 1.21 | 22.24 | 185.10 | -41.54 | 59.59 | 0.7140 | 549.0 | 457.4 | |
| 0.00 | 0.94 | 0.00 | 0.67 | 22.37 | 185.01 | -41.63 | 59.47 | 0.7155 | 571.0 | 492.0 | |
| 0.00 | 0.94 | 0.00 | 0.67 | 22.94 | 184.71 | -41.93 | 58.87 | 0.7212 | 365.0 | 318.7 | |
| 0.00 | 1.03 | 0.00 | 0.73 | 22.14 | 184.83 | -41.80 | 59.85 | 0.7164 | 519.0 | 403.2 | |
| 0.00 | 1.63 | 0.00 | 1.16 | 22.65 | 184.60 | -42.03 | 59.30 | 0.7210 | 606.0 | 480.9 | |
| 0.00 | 0.77 | 0.00 | 0.55 | 22.46 | 184.67 | -41.96 | 59.51 | 0.7194 | 518.0 | 468.7 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 22.19 | 183.73 | -42.90 | 60.29 | 0.7281 | 467.0 | 394.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
