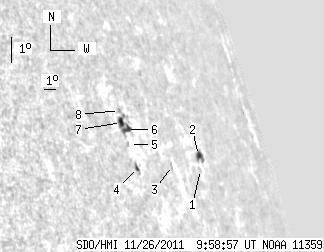

SDO HMI 2011-11-26 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.67 | 30.72 | 18.68 | 45.82 | 17.04 | 296.73 | 70.09 | 287.59 | 0.9433 | 175.3 | 109.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 1.88 | 16.10 | 300.66 | 74.02 | 286.31 | 0.9636 | -295.0 | -173.8 | |
| 3.00 | 6.42 | 5.55 | 11.96 | 16.53 | 300.88 | 74.24 | 286.74 | 0.9647 | -350.2 | -101.7 | |
| 0.00 | 1.88 | 0.00 | 2.95 | 16.29 | 297.90 | 71.26 | 286.68 | 0.9503 | -375.0 | -321.0 | |
| 1.28 | 3.42 | 1.74 | 4.64 | 16.30 | 294.75 | 68.12 | 286.94 | 0.9326 | 257.1 | 208.9 | |
| 0.00 | 1.11 | 0.00 | 1.50 | 17.02 | 294.62 | 67.98 | 287.71 | 0.9322 | 337.0 | 311.0 | |
| 4.54 | 15.15 | 6.19 | 20.57 | 17.48 | 294.73 | 68.09 | 288.20 | 0.9331 | 394.6 | 325.7 | |
| 3.85 | -6.00 | 5.20 | -6.00 | 17.70 | 294.49 | 67.85 | 288.46 | 0.9318 | 568.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 2.32 | 18.07 | 294.62 | 67.98 | 288.84 | 0.9328 | 406.0 | 355.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
