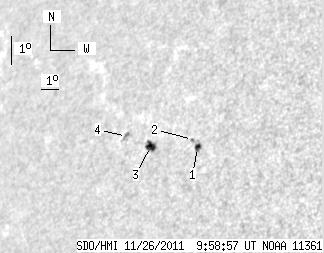

SDO HMI 2011-11-26 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.41 | 19.43 | 8.51 | 17.85 | 19.62 | 170.90 | -55.74 | 67.53 | 0.8442 | -463.6 | 64.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.08 | 3.77 | 2.67 | 3.26 | 19.54 | 173.31 | -53.33 | 67.08 | 0.8228 | -642.4 | -550.8 | |
| 0.00 | 1.28 | 0.00 | 1.12 | 19.78 | 172.93 | -53.71 | 66.89 | 0.8269 | -429.0 | -335.7 | |
| 6.33 | 8.82 | 5.84 | 8.13 | 19.52 | 170.76 | -55.88 | 67.69 | 0.8455 | -546.1 | -307.9 | |
| 0.00 | 5.56 | 0.00 | 5.34 | 19.80 | 169.22 | -57.42 | 67.69 | 0.8590 | 461.0 | 376.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
