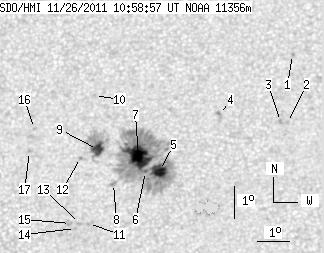

SDO HMI 2011-11-26 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.00 | 298.87 | 27.88 | 154.31 | 17.62 | 223.33 | -2.76 | 9.39 | 0.2831 | -780.7 | -377.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.88 | 228.13 | 2.04 | 354.28 | 0.3350 | -792.0 | -681.0 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 18.76 | 227.94 | 1.85 | 354.11 | 0.2997 | -785.0 | -628.1 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 18.79 | 227.73 | 1.64 | 354.81 | 0.2998 | -805.0 | -679.3 | |
| 0.00 | 3.00 | 0.00 | 1.56 | 19.01 | 225.82 | -0.27 | 0.85 | 0.3023 | 981.0 | 756.5 | |
| 12.84 | 245.45 | 6.61 | 126.65 | 17.28 | 223.96 | -2.13 | 7.42 | 0.2755 | -1295.7 | -430.1 | |
| 1.28 | -5.00 | 0.66 | -5.00 | 17.25 | 223.53 | -2.56 | 8.93 | 0.2760 | -1048.6 | 999999 | |
| 30.21 | -5.00 | 15.60 | -5.00 | 17.71 | 223.31 | -2.78 | 9.41 | 0.2843 | -1237.6 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.32 | 16.88 | 222.54 | -3.55 | 12.58 | 0.2730 | -991.0 | -692.6 | |
| 9.67 | 33.46 | 5.01 | 17.34 | 17.93 | 222.03 | -4.06 | 13.41 | 0.2920 | -1041.2 | -385.0 | |
| 0.00 | 0.51 | 0.00 | 0.27 | 19.60 | 221.89 | -4.20 | 12.52 | 0.3197 | -616.0 | -478.7 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 15.66 | 221.80 | -4.29 | 16.42 | 0.2562 | 874.0 | 743.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 17.68 | 221.50 | -4.59 | 15.30 | 0.2902 | -670.0 | -536.2 | |
| 0.00 | 1.97 | 0.00 | 1.01 | 15.65 | 221.52 | -4.57 | 17.42 | 0.2575 | 991.0 | 729.9 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 15.50 | 221.40 | -4.69 | 18.03 | 0.2557 | 946.0 | 801.3 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 15.65 | 221.24 | -4.85 | 18.40 | 0.2589 | 862.0 | 778.0 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 18.57 | 220.04 | -6.05 | 18.80 | 0.3116 | 972.0 | 760.4 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 17.86 | 219.91 | -6.18 | 20.00 | 0.3012 | 896.0 | 695.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
