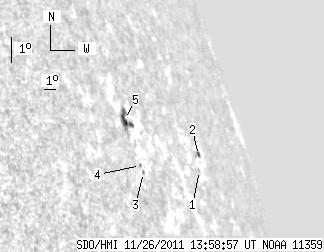

SDO HMI 2011-11-26 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.53 | 18.56 | 6.69 | 29.20 | 17.37 | 295.56 | 71.12 | 287.86 | 0.9492 | 331.0 | 232.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 1.45 | 16.07 | 300.71 | 76.26 | 286.18 | 0.9730 | -183.0 | -138.9 | |
| 0.00 | 1.71 | 0.00 | 3.72 | 16.52 | 301.13 | 76.69 | 286.62 | 0.9747 | -214.0 | -105.1 | |
| 0.00 | 1.20 | 0.00 | 1.79 | 16.15 | 294.69 | 70.25 | 286.61 | 0.9448 | 119.0 | 113.6 | |
| 0.00 | 1.03 | 0.00 | 1.53 | 16.37 | 294.60 | 70.15 | 286.84 | 0.9444 | 230.0 | 260.7 | |
| 4.53 | 13.94 | 6.69 | 20.71 | 17.80 | 294.35 | 69.90 | 288.38 | 0.9437 | 536.1 | 372.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
