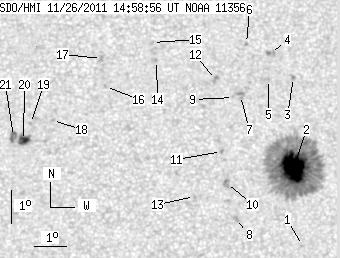

SDO HMI 2011-11-26 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.47 | 319.75 | 26.10 | 165.57 | 15.49 | 233.26 | 9.37 | 327.25 | 0.2917 | -933.0 | -450.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.53 | 12.89 | 234.07 | 10.17 | 319.01 | 0.2636 | -754.0 | -592.8 | |
| 43.97 | 269.89 | 22.77 | 139.78 | 15.26 | 233.89 | 10.00 | 324.91 | 0.2926 | -1525.2 | -455.2 | |
| 0.00 | 2.14 | 0.00 | 1.12 | 18.02 | 234.04 | 10.14 | 329.54 | 0.3319 | -931.0 | -707.2 | |
| 0.00 | 4.19 | 0.00 | 2.20 | 18.76 | 233.35 | 9.46 | 332.36 | 0.3369 | -1011.0 | -780.7 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 17.96 | 233.25 | 9.35 | 331.42 | 0.3246 | -821.0 | -688.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 19.07 | 232.61 | 8.72 | 334.65 | 0.3360 | -905.0 | -691.3 | |
| 0.00 | 3.68 | 0.00 | 1.92 | 17.47 | 232.34 | 8.45 | 333.04 | 0.3105 | -543.0 | -776.3 | |
| 0.00 | 3.08 | 0.00 | 1.58 | 13.72 | 232.03 | 8.14 | 327.03 | 0.2539 | -872.0 | -728.4 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 17.41 | 232.12 | 8.22 | 333.56 | 0.3079 | -741.0 | -611.2 | |
| 0.00 | 4.19 | 0.00 | 2.15 | 14.78 | 231.80 | 7.90 | 329.99 | 0.2669 | -877.0 | -849.7 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 15.75 | 231.68 | 7.78 | 332.15 | 0.2802 | -968.0 | -776.8 | |
| 0.00 | 3.51 | 0.00 | 1.83 | 17.96 | 231.58 | 7.69 | 335.85 | 0.3124 | -899.0 | -781.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.39 | 230.80 | 6.90 | 332.48 | 0.2530 | -813.0 | -644.6 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 18.56 | 229.75 | 5.86 | 341.76 | 0.3105 | -867.0 | -690.7 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 19.11 | 229.65 | 5.75 | 342.64 | 0.3187 | -664.0 | -450.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 17.76 | 228.14 | 4.24 | 345.89 | 0.2902 | -787.0 | -571.7 | |
| 0.00 | 2.05 | 0.00 | 1.07 | 18.62 | 228.03 | 4.14 | 346.93 | 0.3038 | -905.0 | -805.9 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 16.71 | 226.47 | 2.58 | 350.68 | 0.2673 | 823.0 | 621.5 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 16.62 | 225.79 | 1.90 | 353.07 | 0.2641 | 684.0 | 489.3 | |
| 6.50 | 8.47 | 3.33 | 4.34 | 16.10 | 225.57 | 1.68 | 353.64 | 0.2550 | 1103.2 | 772.7 | |
| 0.00 | 5.05 | 0.00 | 2.59 | 16.23 | 225.27 | 1.37 | 354.84 | 0.2565 | 831.0 | 815.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
