SDO HMI 2011-11-26 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.34 | 570.32 | 81.21 | 347.80 | 19.40 | 192.52 | -31.38 | 57.59 | 0.5827 | -301.0 | -132.5 | |
|
previous
or next observation for the same group /

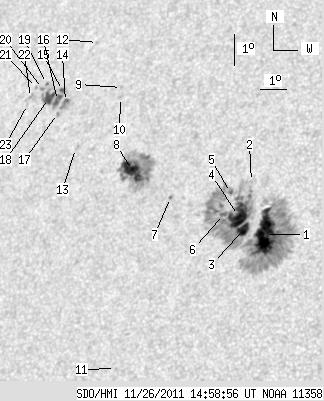

back to the solar disc SDO HMI 2011-11-26 14:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.83 | 428.06 | 32.54 | 255.64 | 18.54 | 194.60 | -29.30 | 57.44 | 0.5527 | -1123.2 | -351.0 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 20.18 | 193.76 | -30.13 | 55.51 | 0.5739 | -203.0 | -212.2 | |
| 8.90 | -1.00 | 5.32 | -1.00 | 18.68 | 193.78 | -30.12 | 57.84 | 0.5637 | -1085.5 | 999999 | |
| 26.18 | -1.00 | 15.75 | -1.00 | 19.12 | 193.51 | -30.39 | 57.36 | 0.5698 | -848.9 | 999999 | |
| 1.37 | -1.00 | 0.83 | -1.00 | 19.83 | 193.07 | -30.83 | 56.59 | 0.5797 | -434.6 | 999999 | |
| 2.40 | -1.00 | 1.45 | -1.00 | 19.14 | 192.96 | -30.94 | 57.73 | 0.5766 | -514.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 19.64 | 190.89 | -33.01 | 58.42 | 0.6046 | 649.0 | 636.6 | |
| 20.10 | 91.53 | 12.77 | 58.06 | 20.46 | 189.24 | -34.66 | 58.27 | 0.6287 | 1008.0 | 515.2 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 23.07 | 188.07 | -35.83 | 55.34 | 0.6570 | 522.0 | 503.8 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 22.76 | 188.13 | -35.77 | 55.74 | 0.6545 | 640.0 | 504.1 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 14.37 | 189.91 | -33.98 | 67.24 | 0.5894 | -614.0 | -451.5 | |
| 0.00 | 1.28 | 0.00 | 0.86 | 24.50 | 186.63 | -37.26 | 54.32 | 0.6807 | 671.0 | 530.5 | |
| 0.00 | 0.68 | 0.00 | 0.45 | 21.12 | 186.83 | -37.07 | 58.78 | 0.6599 | 657.0 | 569.4 | |
| 2.22 | 6.42 | 1.49 | 4.30 | 22.60 | 185.97 | -37.93 | 57.24 | 0.6772 | 848.2 | 781.4 | |
| 1.63 | 26.43 | 1.10 | 17.89 | 22.94 | 185.73 | -38.17 | 56.91 | 0.6816 | 669.9 | 601.8 | |
| 5.90 | -15.00 | 3.98 | -15.00 | 22.62 | 185.63 | -38.26 | 57.39 | 0.6809 | 827.2 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.15 | 22.21 | 185.77 | -38.13 | 57.87 | 0.6773 | 880.0 | 786.5 | |
| 8.55 | -15.00 | 5.80 | -15.00 | 22.68 | 185.24 | -38.65 | 57.53 | 0.6854 | 775.0 | 999999 | |
| 0.26 | 1.28 | 0.18 | 0.88 | 23.16 | 185.00 | -38.90 | 57.03 | 0.6905 | 484.7 | 500.2 | |
| 0.00 | 1.71 | 0.00 | 1.17 | 23.00 | 184.89 | -39.01 | 57.31 | 0.6908 | 568.0 | 473.7 | |
| 0.00 | 0.86 | 0.00 | 0.59 | 23.02 | 184.63 | -39.27 | 57.41 | 0.6937 | 461.0 | 385.7 | |
| 0.00 | 4.02 | 0.00 | 2.76 | 22.70 | 184.49 | -39.41 | 57.91 | 0.6936 | 553.0 | 454.9 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 22.48 | 184.44 | -39.45 | 58.23 | 0.6930 | 429.0 | 315.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
