SDO HMI 2011-11-26 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.72 | 26.78 | 10.53 | 18.74 | 9.32 | 267.77 | 44.42 | 281.79 | 0.7071 | -622.3 | -384.2 | |
|
previous
or next observation for the same group /

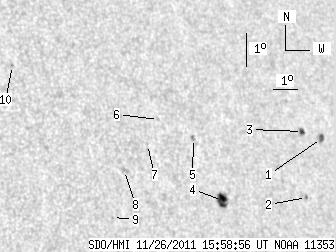

back to the solar disc SDO HMI 2011-11-26 15:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.08 | 3.25 | 2.33 | 2.46 | 10.08 | 272.10 | 48.75 | 282.05 | 0.7593 | -632.6 | -694.0 | |
| 0.00 | 1.03 | 0.00 | 0.76 | 8.33 | 271.10 | 47.75 | 279.88 | 0.7458 | 612.0 | 608.6 | |
| 2.57 | 3.34 | 1.91 | 2.49 | 10.31 | 271.28 | 47.93 | 282.48 | 0.7504 | -697.1 | -576.9 | |
| 9.07 | 10.86 | 6.29 | 7.54 | 8.31 | 267.47 | 44.12 | 280.36 | 0.7027 | -795.1 | -460.0 | |
| 0.00 | 2.14 | 0.00 | 1.47 | 10.18 | 266.55 | 43.21 | 283.20 | 0.6945 | -754.0 | -618.9 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 10.77 | 265.22 | 41.88 | 284.35 | 0.6792 | -570.0 | -452.2 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 10.03 | 264.66 | 41.31 | 283.40 | 0.6706 | -570.0 | -387.2 | |
| 0.00 | 3.16 | 0.00 | 2.07 | 9.27 | 263.63 | 40.28 | 282.50 | 0.6560 | -599.0 | -383.2 | |
| 0.00 | 0.34 | 0.00 | 0.22 | 7.88 | 262.98 | 39.64 | 280.51 | 0.6450 | -590.0 | -624.5 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 12.48 | 259.80 | 36.46 | 288.64 | 0.6146 | -632.0 | -504.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
