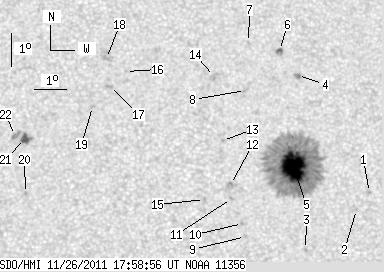

SDO HMI 2011-11-26 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.76 | 330.93 | 29.01 | 172.23 | 15.48 | 233.31 | 11.06 | 322.83 | 0.3076 | -1003.7 | -415.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.85 | 14.47 | 236.19 | 13.95 | 314.00 | 0.3260 | -923.0 | -622.3 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 13.96 | 235.75 | 13.51 | 313.70 | 0.3150 | -593.0 | -472.0 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 12.76 | 234.10 | 11.86 | 314.37 | 0.2816 | -849.0 | -635.5 | |
| 0.00 | 3.34 | 0.00 | 1.76 | 18.06 | 234.16 | 11.92 | 325.52 | 0.3483 | -958.0 | -818.0 | |
| 48.58 | 280.54 | 25.29 | 146.08 | 15.28 | 233.86 | 11.61 | 320.89 | 0.3092 | -1527.9 | -422.0 | |
| 2.05 | 4.53 | 1.09 | 2.40 | 18.84 | 233.64 | 11.40 | 327.95 | 0.3540 | -911.2 | -868.7 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 19.09 | 232.67 | 10.43 | 330.55 | 0.3494 | -878.0 | -638.9 | |
| 0.00 | 1.97 | 0.00 | 1.03 | 17.61 | 232.48 | 10.24 | 328.64 | 0.3271 | -784.0 | -645.7 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 13.16 | 232.26 | 10.02 | 320.11 | 0.2654 | -810.0 | -564.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 13.55 | 232.19 | 9.94 | 321.28 | 0.2697 | -1117.0 | -830.5 | |
| 0.00 | 1.88 | 0.00 | 0.97 | 14.31 | 231.88 | 9.64 | 323.89 | 0.2765 | -995.0 | -751.5 | |
| 0.00 | 3.25 | 0.00 | 1.68 | 14.74 | 231.87 | 9.63 | 324.84 | 0.2821 | -836.0 | -669.7 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 16.08 | 231.68 | 9.44 | 328.01 | 0.2988 | -897.0 | -725.9 | |
| 0.00 | 4.88 | 0.00 | 2.55 | 18.05 | 231.53 | 9.29 | 331.73 | 0.3254 | -868.0 | -672.3 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 14.29 | 231.04 | 8.80 | 326.24 | 0.2680 | -856.0 | -703.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 18.21 | 228.74 | 6.50 | 339.52 | 0.3087 | -660.0 | -526.5 | |
| 0.00 | 2.39 | 0.00 | 1.24 | 17.75 | 228.22 | 5.98 | 340.49 | 0.2986 | -885.0 | -674.5 | |
| 0.00 | 2.65 | 0.00 | 1.38 | 18.61 | 228.16 | 5.92 | 341.65 | 0.3118 | -923.0 | -744.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 17.13 | 227.68 | 5.43 | 341.46 | 0.2859 | 799.0 | 573.6 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 14.48 | 225.55 | 3.31 | 346.04 | 0.2328 | 866.0 | 729.5 | |
| 5.13 | 7.18 | 2.63 | 3.68 | 16.16 | 225.55 | 3.31 | 347.66 | 0.2605 | 1079.0 | 841.8 | |
| 0.00 | 4.62 | 0.00 | 2.37 | 16.25 | 225.27 | 3.03 | 348.74 | 0.2610 | 776.0 | 747.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
