SDO HMI 2011-11-26 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.52 | 593.34 | 74.41 | 355.78 | 19.46 | 192.52 | -29.72 | 56.22 | 0.5632 | -322.4 | -147.3 | |
|
previous
or next observation for the same group /

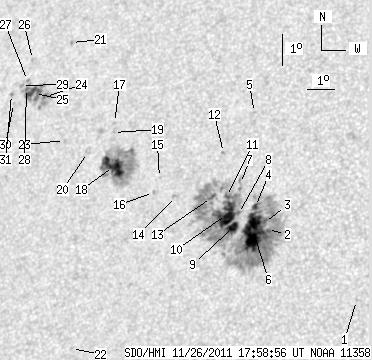

back to the solar disc SDO HMI 2011-11-26 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.48 | 16.47 | 198.48 | -23.76 | 56.00 | 0.4681 | -679.0 | -498.5 | |
| 1.03 | 434.23 | 0.60 | 255.20 | 18.62 | 195.09 | -27.15 | 55.49 | 0.5269 | -939.3 | -380.9 | |
| 0.86 | -2.00 | 0.50 | -2.00 | 18.84 | 194.95 | -27.29 | 55.26 | 0.5303 | -767.8 | 999999 | |
| 2.91 | -2.00 | 1.71 | -2.00 | 19.33 | 194.54 | -27.70 | 54.82 | 0.5388 | -715.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.72 | 22.27 | 193.91 | -28.34 | 50.84 | 0.5687 | -702.0 | -555.5 | |
| 46.36 | -2.00 | 27.08 | -2.00 | 18.55 | 194.61 | -27.63 | 56.03 | 0.5323 | -1188.9 | 999999 | |
| 0.00 | 4.70 | 0.00 | 2.79 | 20.04 | 193.87 | -28.37 | 54.27 | 0.5521 | -598.0 | -459.6 | |
| 0.86 | -2.00 | 0.50 | -2.00 | 19.11 | 193.98 | -28.26 | 55.67 | 0.5440 | -764.5 | 999999 | |
| 6.50 | -2.00 | 3.83 | -2.00 | 18.70 | 193.87 | -28.37 | 56.41 | 0.5424 | -1126.0 | 999999 | |
| 25.74 | -2.00 | 15.23 | -2.00 | 19.07 | 193.56 | -28.68 | 56.08 | 0.5489 | -876.5 | 999999 | |
| 1.88 | -2.00 | 1.12 | -2.00 | 19.63 | 193.45 | -28.79 | 55.28 | 0.5541 | -626.8 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.82 | 21.00 | 193.06 | -29.18 | 53.48 | 0.5687 | -725.0 | -593.7 | |
| 2.14 | -2.00 | 1.28 | -2.00 | 19.59 | 192.92 | -29.33 | 55.77 | 0.5602 | -522.5 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.40 | 19.61 | 191.61 | -30.64 | 56.78 | 0.5760 | 355.0 | 490.5 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 20.19 | 190.89 | -31.35 | 56.42 | 0.5884 | -374.0 | -241.7 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 19.72 | 190.77 | -31.47 | 57.22 | 0.5867 | 768.0 | 624.6 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 21.89 | 188.78 | -33.46 | 55.42 | 0.6237 | 714.0 | 580.2 | |
| 20.44 | 97.08 | 12.77 | 60.50 | 20.51 | 189.10 | -33.15 | 57.21 | 0.6115 | 981.4 | 506.5 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 21.58 | 188.82 | -33.42 | 55.84 | 0.6212 | 722.0 | 642.8 | |
| 0.00 | 1.97 | 0.00 | 1.25 | 20.94 | 188.00 | -34.24 | 57.32 | 0.6267 | 551.0 | 446.9 | |
| 0.00 | 1.63 | 0.00 | 1.08 | 24.41 | 186.34 | -35.90 | 53.57 | 0.6659 | 618.0 | 519.2 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 14.89 | 188.72 | -33.52 | 66.15 | 0.5858 | -579.0 | -463.6 | |
| 0.00 | 1.37 | 0.00 | 0.88 | 21.30 | 187.01 | -35.23 | 57.42 | 0.6401 | 668.0 | 444.4 | |
| 2.22 | 35.41 | 1.46 | 23.42 | 22.68 | 185.86 | -36.38 | 56.22 | 0.6609 | 896.7 | 676.8 | |
| 11.72 | -24.00 | 7.76 | -24.00 | 22.77 | 185.39 | -36.85 | 56.38 | 0.6665 | 821.6 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.86 | 23.85 | 184.95 | -37.29 | 55.19 | 0.6772 | 577.0 | 522.1 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 23.18 | 184.98 | -37.27 | 56.07 | 0.6732 | 596.0 | 508.2 | |
| 0.86 | -24.00 | 0.57 | -24.00 | 22.92 | 185.02 | -37.22 | 56.39 | 0.6713 | 732.8 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.20 | 23.01 | 184.78 | -37.46 | 56.40 | 0.6744 | 587.0 | 519.8 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 22.44 | 184.65 | -37.59 | 57.26 | 0.6727 | 548.0 | 418.8 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 22.72 | 184.47 | -37.77 | 56.98 | 0.6761 | 754.0 | 617.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
