SDO HMI 2011-11-26 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.77 | 311.24 | 27.53 | 162.30 | 15.47 | 233.38 | 11.70 | 321.27 | 0.3137 | -1030.2 | -441.1 | |
|
previous
or next observation for the same group /

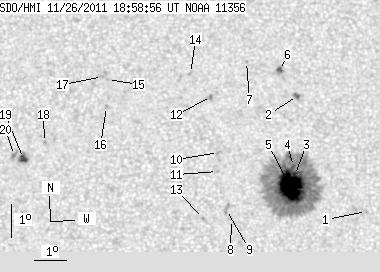

back to the solar disc SDO HMI 2011-11-26 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | 14.50 | 236.18 | 14.49 | 313.01 | 0.3327 | -858.0 | -661.7 | |
| 1.88 | 2.82 | 1.00 | 1.49 | 18.06 | 234.24 | 12.55 | 324.14 | 0.3542 | -882.2 | -812.7 | |
| 0.86 | 274.55 | 0.45 | 143.24 | 15.60 | 233.98 | 12.29 | 320.02 | 0.3205 | -1102.9 | -456.2 | |
| 1.11 | -3.00 | 0.58 | -3.00 | 15.88 | 233.97 | 12.28 | 320.62 | 0.3238 | -615.8 | 999999 | |
| 42.08 | -3.00 | 21.95 | -3.00 | 15.27 | 233.83 | 12.15 | 319.64 | 0.3148 | -1556.1 | 999999 | |
| 2.39 | 3.93 | 1.27 | 2.09 | 18.83 | 233.72 | 12.03 | 326.55 | 0.3596 | -897.9 | -840.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.12 | 232.69 | 11.00 | 329.28 | 0.3544 | -745.0 | -545.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 14.27 | 231.94 | 10.25 | 322.12 | 0.2823 | -835.0 | -715.7 | |
| 0.00 | 3.85 | 0.00 | 1.99 | 14.58 | 231.80 | 10.11 | 323.17 | 0.2848 | -710.0 | -716.3 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 16.32 | 231.64 | 9.95 | 327.11 | 0.3067 | -829.0 | -580.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 15.74 | 231.58 | 9.89 | 326.16 | 0.2982 | -725.0 | -526.5 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 18.04 | 231.51 | 9.82 | 330.38 | 0.3296 | -841.0 | -803.1 | |
| 0.00 | 1.88 | 0.00 | 0.97 | 14.31 | 231.08 | 9.39 | 324.59 | 0.2740 | -964.0 | -709.0 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 18.75 | 230.89 | 9.20 | 333.00 | 0.3350 | -804.0 | -689.5 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 18.57 | 228.26 | 6.58 | 339.74 | 0.3149 | -922.0 | -775.0 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 17.74 | 228.20 | 6.51 | 338.91 | 0.3016 | -807.0 | -682.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.67 | 228.11 | 6.42 | 340.28 | 0.3154 | -968.0 | -715.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 16.64 | 226.24 | 4.55 | 343.79 | 0.2736 | 936.0 | 757.3 | |
| 4.45 | 6.84 | 2.28 | 3.51 | 16.15 | 225.58 | 3.89 | 345.57 | 0.2627 | 1072.3 | 705.5 | |
| 0.00 | 3.59 | 0.00 | 1.84 | 16.24 | 225.30 | 3.62 | 346.63 | 0.2631 | 948.0 | 761.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
