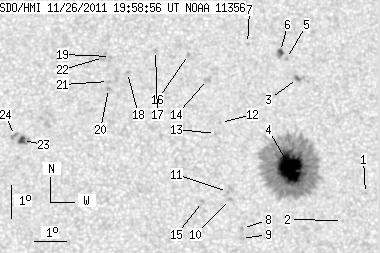

SDO HMI 2011-11-26 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.81 | 325.02 | 26.56 | 169.89 | 15.57 | 233.30 | 12.16 | 320.39 | 0.3203 | -1047.0 | -451.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.59 | 14.49 | 236.16 | 15.02 | 312.00 | 0.3392 | -836.0 | -622.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 13.68 | 235.38 | 14.25 | 311.57 | 0.3210 | -650.0 | -517.1 | |
| 1.63 | 3.51 | 0.86 | 1.86 | 18.02 | 234.26 | 13.12 | 322.89 | 0.3594 | -924.4 | -751.8 | |
| 42.68 | 275.58 | 22.31 | 144.10 | 15.30 | 233.85 | 12.71 | 318.44 | 0.3214 | -1535.4 | -452.1 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 18.64 | 233.95 | 12.82 | 324.59 | 0.3644 | -820.0 | -657.9 | |
| 2.82 | 4.70 | 1.50 | 2.50 | 18.86 | 233.78 | 12.64 | 325.31 | 0.3656 | -857.8 | -856.6 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 19.11 | 232.74 | 11.61 | 327.93 | 0.3596 | -696.0 | -521.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 13.45 | 232.25 | 11.12 | 317.96 | 0.2812 | -1022.0 | -806.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 13.15 | 232.21 | 11.07 | 317.32 | 0.2771 | -724.0 | -569.7 | |
| 0.00 | 2.05 | 0.00 | 1.06 | 14.33 | 231.92 | 10.79 | 320.87 | 0.2886 | -1070.0 | -832.3 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 14.58 | 231.84 | 10.70 | 321.63 | 0.2909 | -830.0 | -787.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 16.68 | 231.73 | 10.60 | 326.15 | 0.3177 | -810.0 | -659.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 16.34 | 231.56 | 10.42 | 325.96 | 0.3115 | -800.0 | -635.7 | |
| 0.00 | 3.34 | 0.00 | 1.75 | 18.00 | 231.40 | 10.26 | 329.25 | 0.3329 | -832.0 | -715.9 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 14.28 | 231.05 | 9.91 | 323.05 | 0.2789 | -896.0 | -670.7 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 18.78 | 230.84 | 9.71 | 331.80 | 0.3393 | -767.0 | -648.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.91 | 229.81 | 8.67 | 334.56 | 0.3335 | -810.0 | -660.6 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 18.23 | 228.89 | 7.75 | 336.04 | 0.3170 | -750.0 | -602.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.73 | 228.38 | 7.24 | 338.08 | 0.3212 | -733.0 | -679.4 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 17.74 | 228.27 | 7.14 | 337.10 | 0.3055 | -776.0 | -615.1 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 17.95 | 228.28 | 7.15 | 337.36 | 0.3089 | -852.0 | -592.0 | |
| 0.00 | 4.70 | 0.00 | 2.46 | 18.70 | 228.16 | 7.02 | 338.65 | 0.3194 | -743.0 | -686.8 | |
| 3.68 | 7.44 | 1.89 | 3.82 | 16.15 | 225.55 | 4.42 | 343.72 | 0.2651 | 1105.2 | 722.4 | |
| 0.00 | 3.16 | 0.00 | 1.63 | 16.30 | 225.31 | 4.17 | 344.73 | 0.2665 | 915.0 | 713.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
