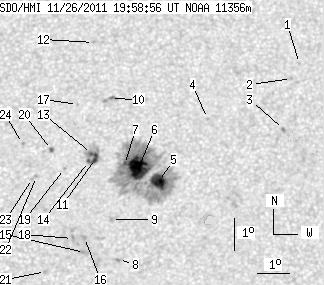

SDO HMI 2011-11-26 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.26 | 284.06 | 26.98 | 146.63 | 17.65 | 223.34 | 2.21 | 352.54 | 0.2825 | -649.8 | -371.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.59 | 21.00 | 228.55 | 7.41 | 340.19 | 0.3570 | -677.0 | -483.2 | |
| 0.00 | 0.51 | 0.00 | 0.27 | 20.53 | 228.27 | 7.13 | 340.40 | 0.3483 | -882.0 | -643.0 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 18.95 | 227.95 | 6.81 | 339.52 | 0.3220 | -888.0 | -747.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 19.29 | 225.57 | 4.43 | 346.59 | 0.3160 | 747.0 | 559.0 | |
| 14.80 | 232.56 | 7.63 | 120.03 | 17.35 | 224.00 | 2.86 | 350.11 | 0.2788 | -1275.7 | -449.5 | |
| 27.37 | -5.00 | 14.13 | -5.00 | 17.78 | 223.38 | 2.25 | 352.42 | 0.2844 | -1329.2 | 999999 | |
| 1.20 | -5.00 | 0.62 | -5.00 | 17.87 | 222.95 | 1.81 | 353.91 | 0.2851 | -767.4 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.26 | 14.96 | 222.74 | 1.60 | 353.39 | 0.2358 | 813.0 | 712.7 | |
| 0.00 | 2.39 | 0.00 | 1.23 | 16.18 | 222.53 | 1.40 | 354.73 | 0.2561 | -842.0 | -595.9 | |
| 0.00 | 4.11 | 0.00 | 2.14 | 19.92 | 222.53 | 1.39 | 355.86 | 0.3185 | -764.0 | -561.2 | |
| 3.76 | 19.93 | 1.95 | 10.31 | 18.06 | 222.05 | 0.91 | 356.96 | 0.2870 | -1079.9 | -543.9 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 21.67 | 222.01 | 0.87 | 357.66 | 0.3470 | 646.0 | 524.4 | |
| 1.71 | -11.00 | 0.88 | -11.00 | 18.21 | 221.92 | 0.79 | 357.40 | 0.2895 | -926.2 | 999999 | |
| 1.28 | -11.00 | 0.66 | -11.00 | 17.97 | 221.83 | 0.69 | 357.67 | 0.2853 | -908.3 | 999999 | |
| 0.00 | 3.68 | 0.00 | 1.88 | 15.18 | 221.70 | 0.56 | 357.71 | 0.2381 | 863.0 | 769.3 | |
| 0.00 | 1.97 | 0.00 | 1.00 | 15.63 | 221.70 | 0.56 | 357.78 | 0.2458 | 896.0 | 805.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 19.73 | 221.49 | 0.36 | 358.93 | 0.3147 | -703.0 | -526.2 | |
| 0.00 | 2.31 | 0.00 | 1.18 | 15.60 | 221.33 | 0.19 | 359.23 | 0.2452 | 893.0 | 844.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.75 | 221.08 | -0.05 | 0.17 | 0.2814 | -736.0 | -533.5 | |
| 2.14 | 2.31 | 1.11 | 1.20 | 18.34 | 220.68 | -0.46 | 1.49 | 0.2914 | 909.0 | 937.0 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 14.60 | 220.50 | -0.63 | 2.69 | 0.2283 | 956.0 | 709.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 17.50 | 220.22 | -0.92 | 3.17 | 0.2777 | 934.0 | 712.5 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 17.44 | 220.09 | -1.04 | 3.61 | 0.2768 | 797.0 | 659.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 18.52 | 219.77 | -1.36 | 4.40 | 0.2953 | 870.0 | 740.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
