SDO HMI 2011-11-26 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.88 | 257.81 | 22.67 | 133.12 | 17.63 | 223.35 | 2.77 | 350.64 | 0.2836 | -762.6 | -408.7 | |
|
previous
or next observation for the same group /

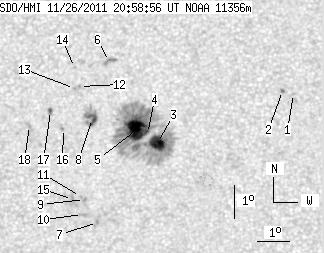

back to the solar disc SDO HMI 2011-11-26 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | 18.87 | 228.31 | 7.72 | 336.97 | 0.3266 | -678.0 | -519.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.97 | 227.96 | 7.38 | 338.00 | 0.3258 | -888.0 | -785.2 | |
| 14.28 | 212.73 | 7.37 | 109.85 | 17.37 | 224.00 | 3.42 | 348.25 | 0.2810 | -1299.3 | -482.5 | |
| 0.26 | -3.00 | 0.13 | -3.00 | 17.65 | 223.70 | 3.12 | 349.46 | 0.2846 | -911.0 | 999999 | |
| 21.98 | -3.00 | 11.36 | -3.00 | 17.77 | 223.36 | 2.78 | 350.66 | 0.2857 | -1368.3 | 999999 | |
| 0.00 | 5.39 | 0.00 | 2.81 | 19.88 | 222.54 | 1.96 | 354.18 | 0.3188 | -671.0 | -599.4 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 14.93 | 222.12 | 1.54 | 353.62 | 0.2351 | 1069.0 | 882.1 | |
| 5.99 | 16.25 | 3.10 | 8.41 | 18.11 | 222.00 | 1.41 | 355.32 | 0.2886 | -959.0 | -667.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.63 | 221.73 | 1.15 | 355.49 | 0.2464 | 925.0 | 829.5 | |
| 0.00 | 2.99 | 0.00 | 1.53 | 15.17 | 221.67 | 1.08 | 355.59 | 0.2385 | 942.0 | 726.2 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 15.72 | 221.61 | 1.03 | 355.99 | 0.2478 | 792.0 | 577.7 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 19.10 | 221.60 | 1.01 | 356.84 | 0.3046 | -699.0 | -548.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 19.04 | 221.44 | 0.86 | 357.32 | 0.3035 | -772.0 | -716.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 19.69 | 221.44 | 0.86 | 357.41 | 0.3144 | -769.0 | -662.0 | |
| 0.00 | 6.42 | 0.00 | 3.28 | 15.63 | 221.36 | 0.78 | 356.93 | 0.2460 | 981.0 | 679.5 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 17.80 | 221.09 | 0.51 | 358.27 | 0.2825 | -659.0 | -534.2 | |
| 1.37 | 2.22 | 0.71 | 1.15 | 18.36 | 220.69 | 0.11 | 359.65 | 0.2917 | 937.8 | 840.1 | |
| 0.00 | 1.97 | 0.00 | 1.02 | 17.90 | 220.04 | -0.55 | 1.84 | 0.2841 | 918.0 | 736.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
