SDO HMI 2011-11-26 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.75 | 283.54 | 23.18 | 146.78 | 17.74 | 223.37 | 4.44 | 345.30 | 0.2916 | -622.0 | -357.0 | |
|
previous
or next observation for the same group /

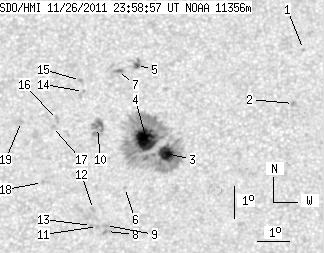

back to the solar disc SDO HMI 2011-11-26 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.59 | 228.49 | 9.57 | 334.64 | 0.3648 | -721.0 | -551.7 | |
| 0.00 | 2.22 | 0.00 | 1.17 | 18.91 | 228.08 | 9.15 | 333.39 | 0.3374 | -936.0 | -756.6 | |
| 14.12 | 231.69 | 7.30 | 119.90 | 17.38 | 224.00 | 5.07 | 342.92 | 0.2885 | -1290.9 | -427.6 | |
| 28.06 | -3.00 | 14.53 | -3.00 | 17.81 | 223.42 | 4.49 | 345.18 | 0.2927 | -1287.0 | 999999 | |
| 2.57 | 6.59 | 1.35 | 3.45 | 20.11 | 223.16 | 4.24 | 347.76 | 0.3288 | 816.7 | 391.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 16.34 | 222.70 | 3.78 | 346.18 | 0.2658 | -728.0 | -538.3 | |
| 0.00 | 3.59 | 0.00 | 1.88 | 19.92 | 222.56 | 3.63 | 349.35 | 0.3238 | -793.0 | -500.1 | |
| 0.00 | 2.82 | 0.00 | 1.44 | 15.00 | 222.13 | 3.20 | 347.04 | 0.2414 | 1003.0 | 868.2 | |
| 0.00 | 2.65 | 0.00 | 1.35 | 15.18 | 222.10 | 3.17 | 347.32 | 0.2444 | 952.0 | 713.6 | |
| 0.00 | 16.60 | 0.00 | 8.60 | 18.19 | 221.90 | 2.97 | 350.29 | 0.2934 | -984.0 | -792.3 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.15 | 221.85 | 2.92 | 348.25 | 0.2430 | 1069.0 | 798.2 | |
| 0.00 | 2.40 | 0.00 | 1.23 | 15.67 | 221.74 | 2.81 | 349.12 | 0.2512 | 866.0 | 742.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.18 | 221.67 | 2.74 | 348.99 | 0.2429 | 981.0 | 768.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 19.30 | 221.48 | 2.55 | 352.19 | 0.3108 | -729.0 | -579.4 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 19.64 | 221.39 | 2.46 | 352.61 | 0.3162 | -844.0 | -531.9 | |
| 0.00 | 2.40 | 0.00 | 1.24 | 18.43 | 220.65 | 1.73 | 354.40 | 0.2948 | 991.0 | 754.0 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 18.22 | 220.50 | 1.57 | 354.84 | 0.2909 | 874.0 | 650.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 16.50 | 220.17 | 1.25 | 355.40 | 0.2615 | 850.0 | 720.4 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 18.37 | 219.53 | 0.61 | 358.03 | 0.2925 | 800.0 | 569.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
