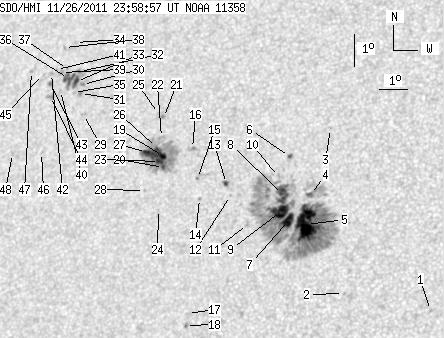

SDO HMI 2011-11-26 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.90 | 553.13 | 65.13 | 322.08 | 19.46 | 192.43 | -26.50 | 53.34 | 0.5247 | -303.1 | -138.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-26 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.74 | 15.89 | 199.11 | -19.82 | 52.43 | 0.4131 | -831.0 | -582.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 16.39 | 196.18 | -22.75 | 55.02 | 0.4547 | -779.0 | -672.7 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 21.50 | 194.97 | -23.95 | 47.61 | 0.5135 | -708.0 | -540.5 | |
| 2.22 | 23.10 | 1.27 | 13.18 | 19.43 | 194.63 | -24.30 | 51.31 | 0.4992 | -686.2 | -226.8 | |
| 46.20 | 371.83 | 26.24 | 212.20 | 18.50 | 194.64 | -24.29 | 52.88 | 0.4913 | -1236.3 | -428.4 | |
| 1.80 | 1.88 | 1.04 | 1.09 | 20.61 | 193.70 | -25.23 | 50.37 | 0.5201 | -621.7 | -206.0 | |
| 10.01 | -5.00 | 5.72 | -5.00 | 18.62 | 194.00 | -24.93 | 53.34 | 0.5000 | -1060.3 | 999999 | |
| 11.72 | -5.00 | 6.74 | -5.00 | 19.42 | 193.66 | -25.27 | 52.33 | 0.5106 | -781.6 | 999999 | |
| 14.80 | -5.00 | 8.49 | -5.00 | 18.89 | 193.68 | -25.25 | 53.19 | 0.5061 | -937.5 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.09 | 19.98 | 193.43 | -25.50 | 51.65 | 0.5180 | -147.0 | -146.0 | |
| 0.00 | 2.22 | 0.00 | 1.28 | 18.48 | 192.60 | -26.33 | 54.93 | 0.5160 | -682.0 | -472.7 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 19.37 | 191.85 | -27.08 | 54.15 | 0.5319 | -521.0 | -355.6 | |
| 1.54 | 2.91 | 0.90 | 1.71 | 19.74 | 191.64 | -27.29 | 53.74 | 0.5372 | 868.7 | 709.2 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 19.27 | 190.77 | -28.15 | 55.27 | 0.5441 | -662.0 | -540.2 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 19.89 | 190.58 | -28.35 | 54.45 | 0.5509 | 788.0 | 672.6 | |
| 0.00 | 3.34 | 0.00 | 1.99 | 20.82 | 190.21 | -28.71 | 53.31 | 0.5622 | 26.0 | -10.4 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 15.72 | 190.95 | -27.98 | 61.10 | 0.5179 | -746.0 | -486.6 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 15.36 | 190.93 | -27.99 | 61.76 | 0.5159 | -903.0 | -757.9 | |
| 2.74 | 82.13 | 1.65 | 49.58 | 20.56 | 189.22 | -29.71 | 54.55 | 0.5719 | 1232.2 | 589.0 | |
| 1.28 | -19.00 | 0.77 | -19.00 | 20.22 | 189.29 | -29.64 | 55.01 | 0.5686 | 928.5 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.09 | 21.79 | 188.94 | -29.98 | 52.93 | 0.5839 | 388.0 | 522.3 | |
| 0.00 | 2.40 | 0.00 | 1.45 | 21.16 | 189.01 | -29.91 | 53.81 | 0.5785 | 186.0 | 208.8 | |
| 2.57 | -19.00 | 1.55 | -19.00 | 20.40 | 189.10 | -29.82 | 54.88 | 0.5721 | 1155.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 18.91 | 189.37 | -29.55 | 57.00 | 0.5586 | 597.0 | 476.4 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 21.91 | 188.73 | -30.20 | 52.92 | 0.5872 | 610.0 | 625.0 | |
| 0.68 | -19.00 | 0.41 | -19.00 | 20.84 | 188.90 | -30.03 | 54.38 | 0.5776 | 814.2 | 999999 | |
| 3.08 | -19.00 | 1.87 | -19.00 | 20.68 | 188.57 | -30.36 | 54.88 | 0.5803 | 894.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.72 | 19.49 | 188.75 | -30.18 | 56.56 | 0.5700 | 785.0 | 579.3 | |
| 0.00 | 2.05 | 0.00 | 1.29 | 21.84 | 185.93 | -32.99 | 55.13 | 0.6183 | 621.0 | 605.9 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 22.79 | 185.64 | -33.29 | 53.99 | 0.6278 | 962.0 | 816.1 | |
| 0.00 | 2.22 | 0.00 | 1.41 | 22.51 | 185.64 | -33.29 | 54.40 | 0.6259 | 1018.0 | 806.7 | |
| 1.20 | 22.42 | 0.76 | 14.31 | 23.20 | 185.41 | -33.52 | 53.58 | 0.6330 | 693.2 | 630.4 | |
| 3.59 | -32.00 | 2.29 | -32.00 | 22.88 | 185.38 | -33.54 | 54.05 | 0.6312 | 872.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 24.13 | 184.98 | -33.95 | 52.62 | 0.6437 | 369.0 | 387.7 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 22.53 | 185.36 | -33.56 | 54.55 | 0.6291 | 788.0 | 669.9 | |
| 8.04 | -32.00 | 5.15 | -32.00 | 22.98 | 185.05 | -33.88 | 54.15 | 0.6355 | 801.4 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.44 | 23.26 | 184.93 | -34.00 | 53.84 | 0.6386 | 434.0 | 436.1 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 23.96 | 184.60 | -34.33 | 53.11 | 0.6467 | 526.0 | 441.5 | |
| 0.00 | 2.48 | 0.00 | 1.60 | 23.16 | 184.72 | -34.21 | 54.12 | 0.6402 | 652.0 | 499.1 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 22.59 | 184.85 | -34.08 | 54.83 | 0.6352 | 536.0 | 494.3 | |
| 0.00 | 1.03 | 0.00 | 0.66 | 23.26 | 184.50 | -34.43 | 54.14 | 0.6433 | 515.0 | 449.8 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 23.13 | 184.34 | -34.59 | 54.42 | 0.6442 | 654.0 | 523.5 | |
| 0.43 | 2.05 | 0.28 | 1.32 | 22.81 | 184.39 | -34.53 | 54.83 | 0.6416 | 799.8 | 641.9 | |
| 0.00 | 3.68 | 0.00 | 2.36 | 22.40 | 184.51 | -34.41 | 55.32 | 0.6377 | 676.0 | 538.1 | |
| 0.00 | 0.34 | 0.00 | 0.22 | 23.09 | 184.00 | -34.93 | 54.70 | 0.6477 | 416.0 | 496.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 20.63 | 184.64 | -34.28 | 57.75 | 0.6256 | 607.0 | 491.1 | |
| 0.00 | 1.37 | 0.00 | 0.89 | 23.18 | 183.54 | -35.39 | 54.88 | 0.6532 | 507.0 | 408.8 | |
| 0.00 | 1.71 | 0.00 | 1.10 | 20.58 | 183.54 | -35.39 | 58.51 | 0.6381 | 708.0 | 552.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
