SDO HMI 2011-11-26 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.93 | 21.13 | 7.78 | 16.33 | 19.46 | 171.10 | -47.83 | 65.59 | 0.7694 | -228.9 | -349.4 | |
|
previous
or next observation for the same group /

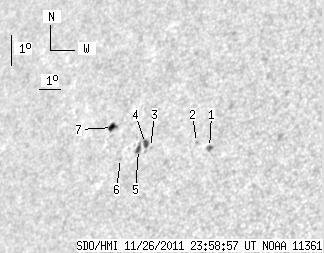

back to the solar disc SDO HMI 2011-11-26 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.82 | 0.00 | 2.06 | 19.34 | 174.12 | -44.80 | 64.71 | 0.7377 | -862.0 | -706.0 | |
| 0.00 | 1.03 | 0.00 | 0.76 | 19.49 | 173.49 | -45.43 | 64.75 | 0.7449 | -661.0 | -432.5 | |
| 0.00 | 1.37 | 0.00 | 1.05 | 19.30 | 171.46 | -47.47 | 65.69 | 0.7655 | -704.0 | -428.1 | |
| 3.17 | 4.88 | 2.44 | 3.76 | 19.42 | 171.18 | -47.75 | 65.63 | 0.7687 | -638.1 | -599.3 | |
| 2.65 | 4.36 | 2.05 | 3.38 | 19.23 | 170.93 | -48.00 | 65.95 | 0.7707 | -520.8 | -396.0 | |
| 0.00 | 1.28 | 0.00 | 1.01 | 18.93 | 170.19 | -48.74 | 66.54 | 0.7774 | 214.0 | 153.9 | |
| 4.11 | 5.39 | 3.29 | 4.31 | 19.89 | 169.41 | -49.51 | 65.59 | 0.7877 | 590.0 | 396.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
